绳索缆绳
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 211151 |
| 产品单位 | PCE |

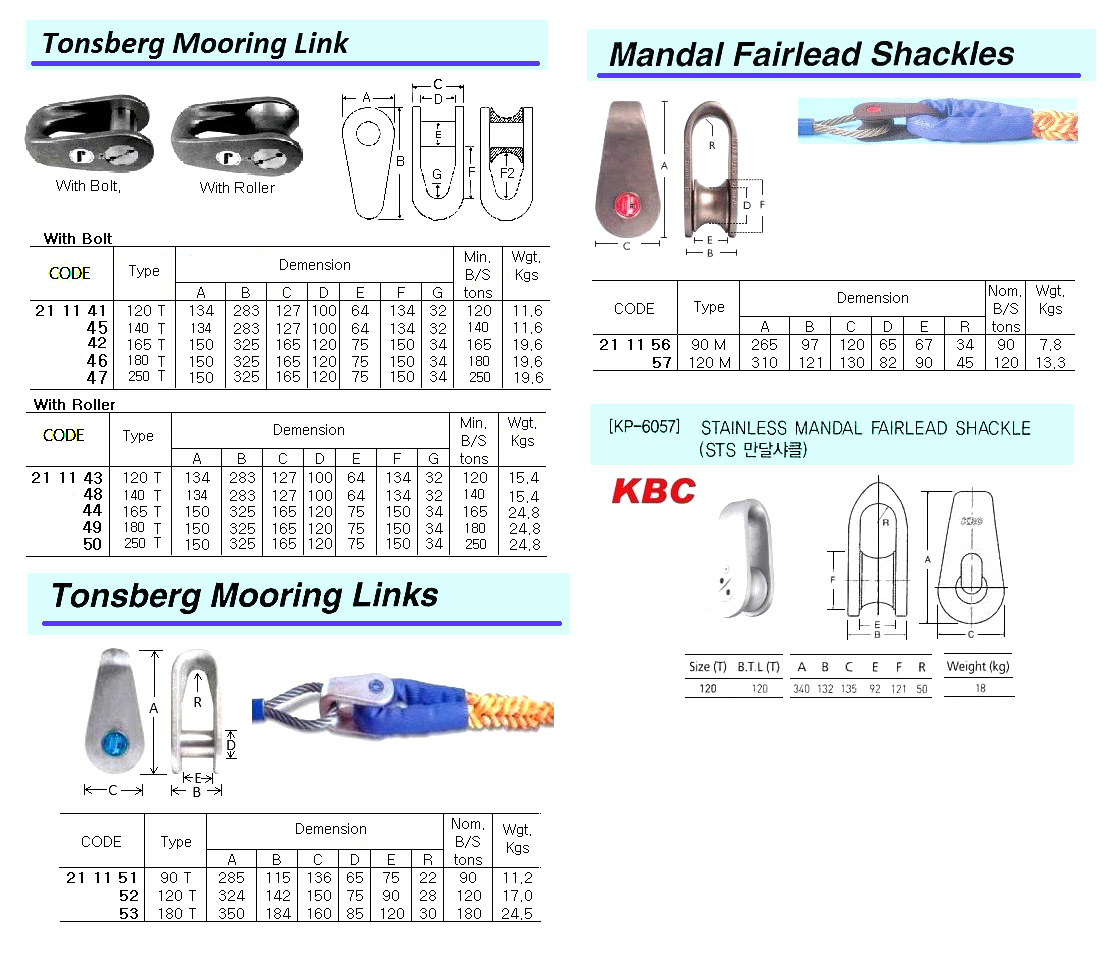

| 产品规格 | Galvanized steel mooring link of compact design typically utilised as connection between wire rope and fibre forerunner. Stocked in three sizes 90T, 120T and 180T. 250T can be supplied on special request. Steel wire rope around the body - fibre rope around the bolt. Each link is individually proof-tested and certified by DNV. |
| 中文汉化 | 211151?TONSBERG系泊连接环?破断强度90吨 带DNV认证 -----描述-----：镀锌钢制系泊连接环采用紧凑型设计，作为钢缆与纤维前导缆的专业连接件，常规提供90T、120T和180T三种规格（250T可定制）。产品通过DNV单独测试认证，钢缆端固定环体、纤维缆端固定螺栓的设计确保可靠连接，热浸镀锌处理（锌层≥85μm）赋予优异防腐性能，符合ISO 1704标准，工作负荷为破断强度（MBL）的33%（建议操作负荷20%），适用于恶劣海洋环境，大吨位型号需配套专用工具安装。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
