阀门旋塞
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 756799 |
| 产品单位 | PCE |

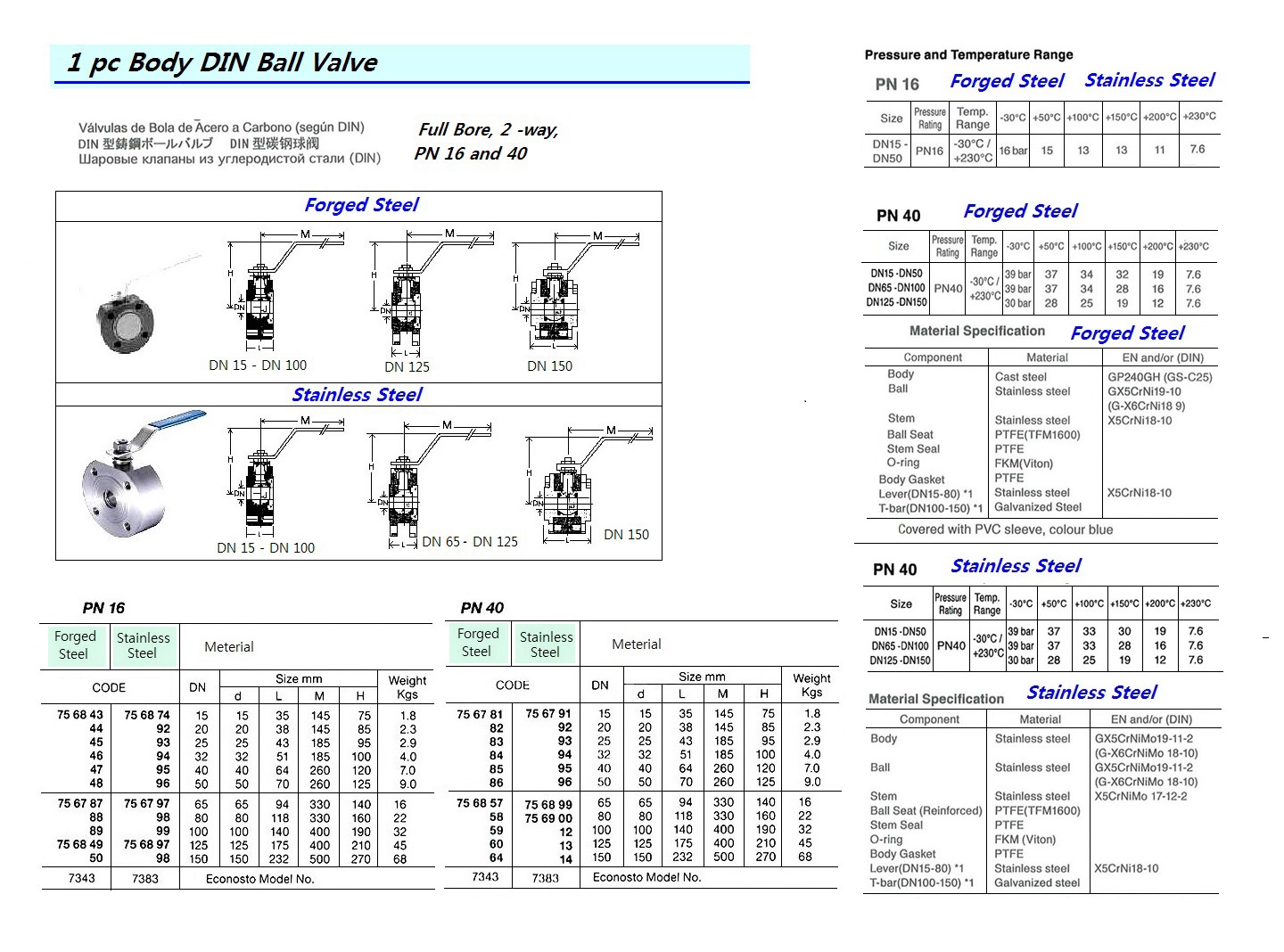

| 产品规格 | Wafer type ball valve with full bore, floating ball and flange connection to DIN PN16 or PN40. Actuated by means of a lever or T-bar. This type of ball valve is generally used in industrial systems such as steam, water, gases, and corrosive media, up to a maximum of 40 bar (PN40 version) |
| 中文汉化 | 756799 球阀 DIN标准 不锈钢 对夹式 PN16 #7383 DN100 -----描述-----：对夹式全通径球阀，采用浮动球结构，法兰连接符合DIN PN16或PN40标准，通过手柄或T型杆驱动，广泛用于工业系统中的蒸汽、水、气体及腐蚀性介质，最高工作压力可达40 bar（PN40版本）。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
