阀门旋塞
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 756714 |
| 产品单位 | PCE |

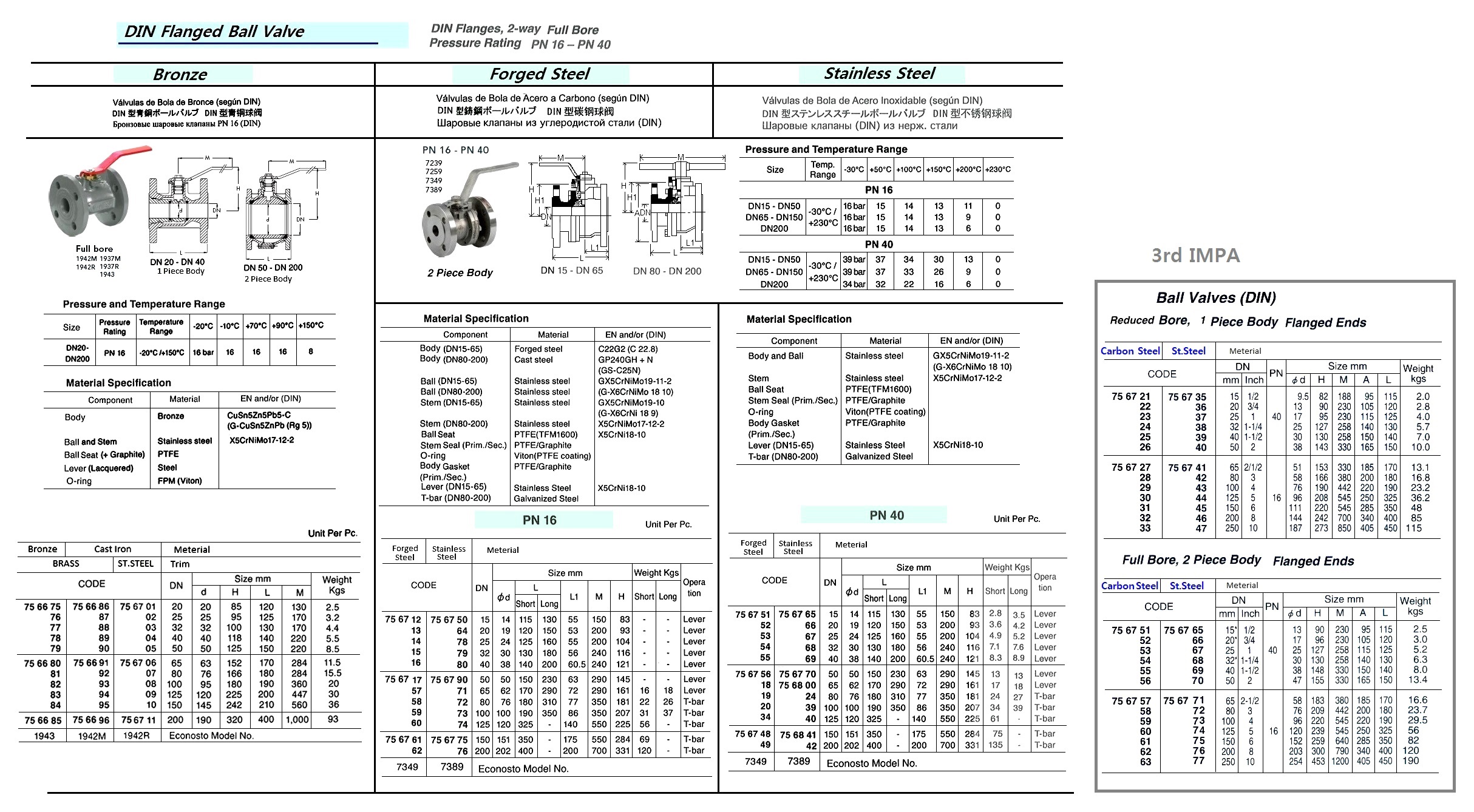

| 产品规格 | Two-piece ball valve with full bore, floating ball and flange connection to DIN PN 16 or PN 40. Actuated by means of a lever, T-bar or gearbox. Also available with a pneumatic or electric actuator. This type of ball valve is generally used in industrial systems such as steam, water, gases, and corrosive media, up to a maximum of 40 bar (PN 40 version). These ball valves are anti-static, fire-safe and fitted with a double gland packing and blow-out proof stem. |
| 中文汉化 | 756714 球阀 DIN标准 锻钢 全通径 PN16 #7349 DN25 -----描述-----：两片式全通径球阀，采用浮动球结构，法兰连接，符合DIN PN 16或PN 40压力等级，通过手柄、T型杆或齿轮箱驱动，也可选配气动或电动执行器，广泛用于工业系统中，如蒸汽、水、气体及腐蚀性介质，最高工作压力可达40 bar（PN 40版本），该球阀具备防静电、防火安全设计，并配有双层填料函和防吹出阀杆 |
| IMPA版本 | Other Versions |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
