阀门旋塞
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 756667 |
| 产品单位 | PCE |

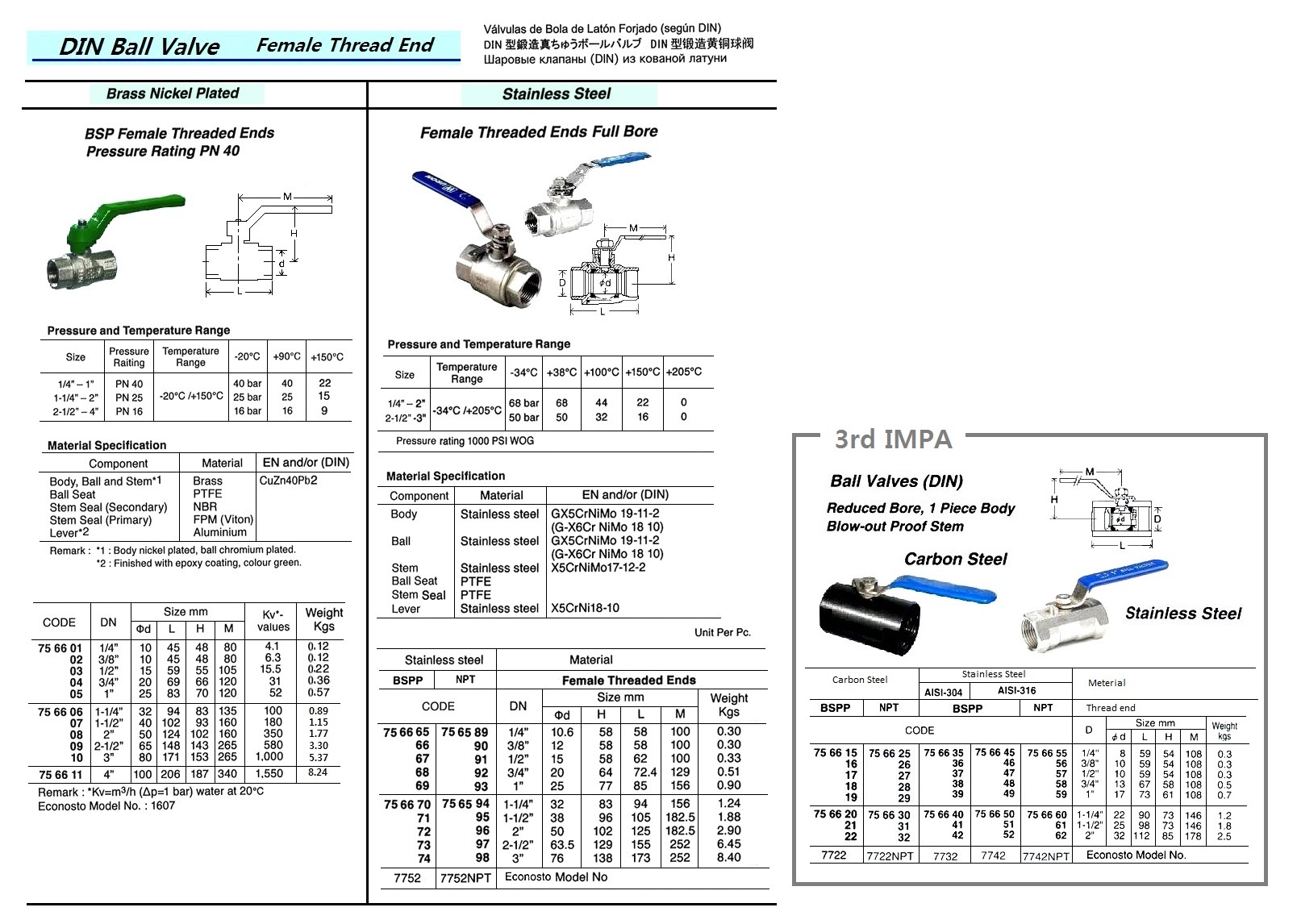

| 产品规格 | Two-piece ball valve with full bore, floating ball, BSP or NPT female thread connection, pressure rating 1,000 PSI WOG, fitted with blow-out proof stem. This ball valve is available in stainless steel 1.4408. Actuated by means of a lockable lever with PVC sleeve. This type of ball valve is generally applicable e.g. for compressed air, HVAC, fuel and corrosive systems up to maximum 68 bar. |
| 中文汉化 | 756667 球阀 DIN标准 不锈钢 1000LBS 全通径 #7752 BSP 1/2" -----描述-----：两片式全通径球阀，采用浮动球结构，BSP或NPT内螺纹连接，压力等级为1000 PSI WOG，并配备防吹出阀杆，阀体材质为不锈钢1.4408，操作手柄为带PVC套的可锁式设计，广泛适用于压缩空气、暖通空调、燃油及腐蚀性介质系统，最高工作压力可达68 bar。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
