阀门旋塞
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 756572 |
| 产品单位 | PCE |

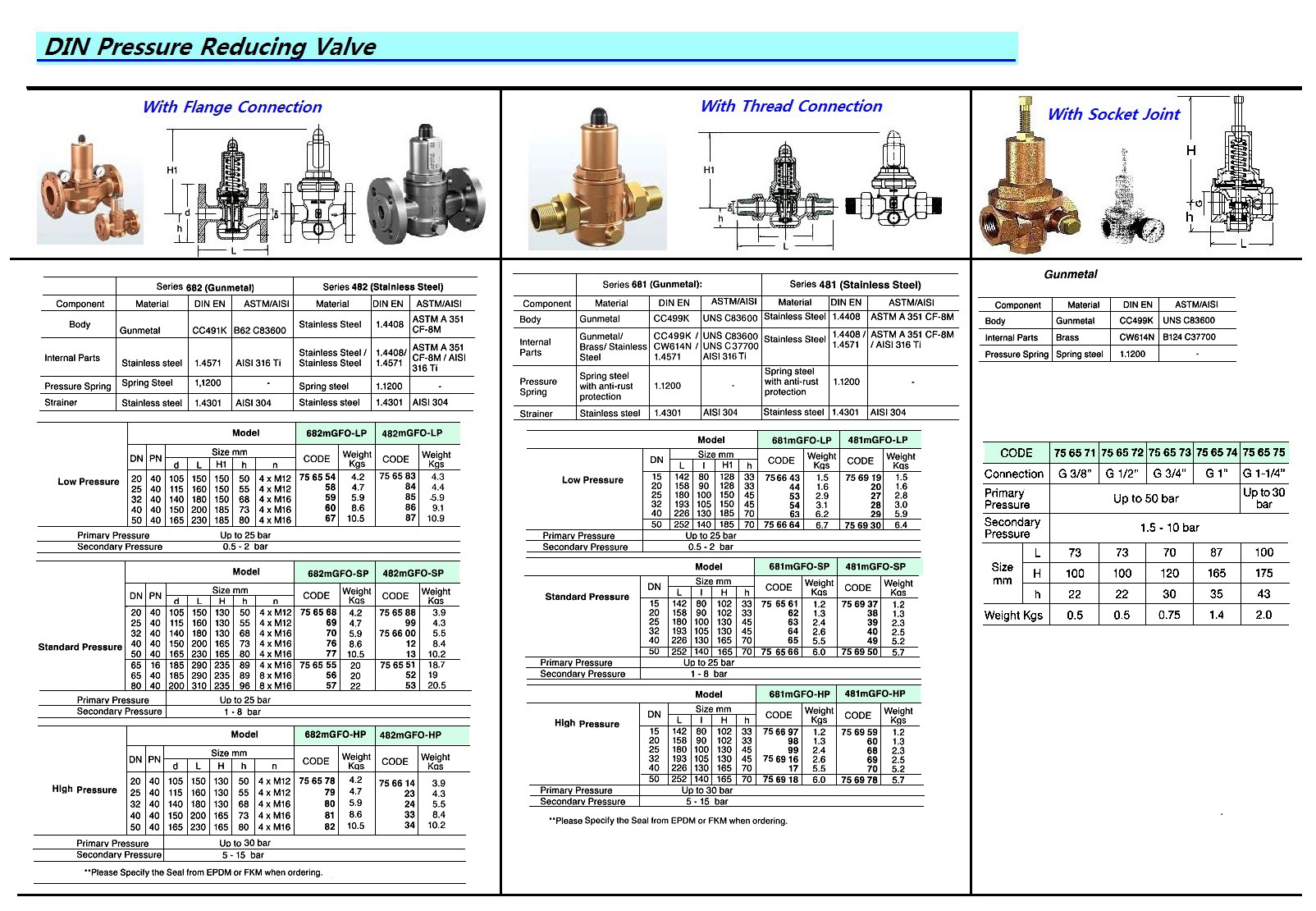

| 产品规格 | Marine Type Approvals held for these valves: American Bureau of Shipping, Bureau Veritas, Germanischer Lloyd, Lloyds Register. Pressure reducer with socket joint made of red brass with pressure-relieved single seat valve. Suitable for compressed air and neutral gas, water, neutral and non-sticking liquids. Body with G 1/4” connection for pressure gauge on both sides. Primary pressure: up to 50 bar (DN32-30 bar), Secondary pressure: 1.5 to 10 bar, Biggest reduction relation 10:1 |
| 中文汉化 | 756572 减压阀 DIN标准 #683 红铜 1/2" 承插连接 -----描述-----：这些阀门已获得美国船级社（American Bureau of Shipping）、法国船级社（Bureau Veritas）、德国劳氏船级社（Germanischer Lloyd）和英国劳氏船级社（Lloyds Register）的船用型式认证，减压阀为红铜材质的承插连接形式，配备压力释放单座阀瓣，适用于压缩空气和中性气体、水以及中性或不粘性液体，阀体两侧设有G 1/4英寸压力表接口，一次侧最大压力为50巴（DN32及以下为30巴），二次侧压力范围为1.5至10巴，最大减压比为10:1。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
