阀门旋塞
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 756522 |
| 产品单位 | PCE |

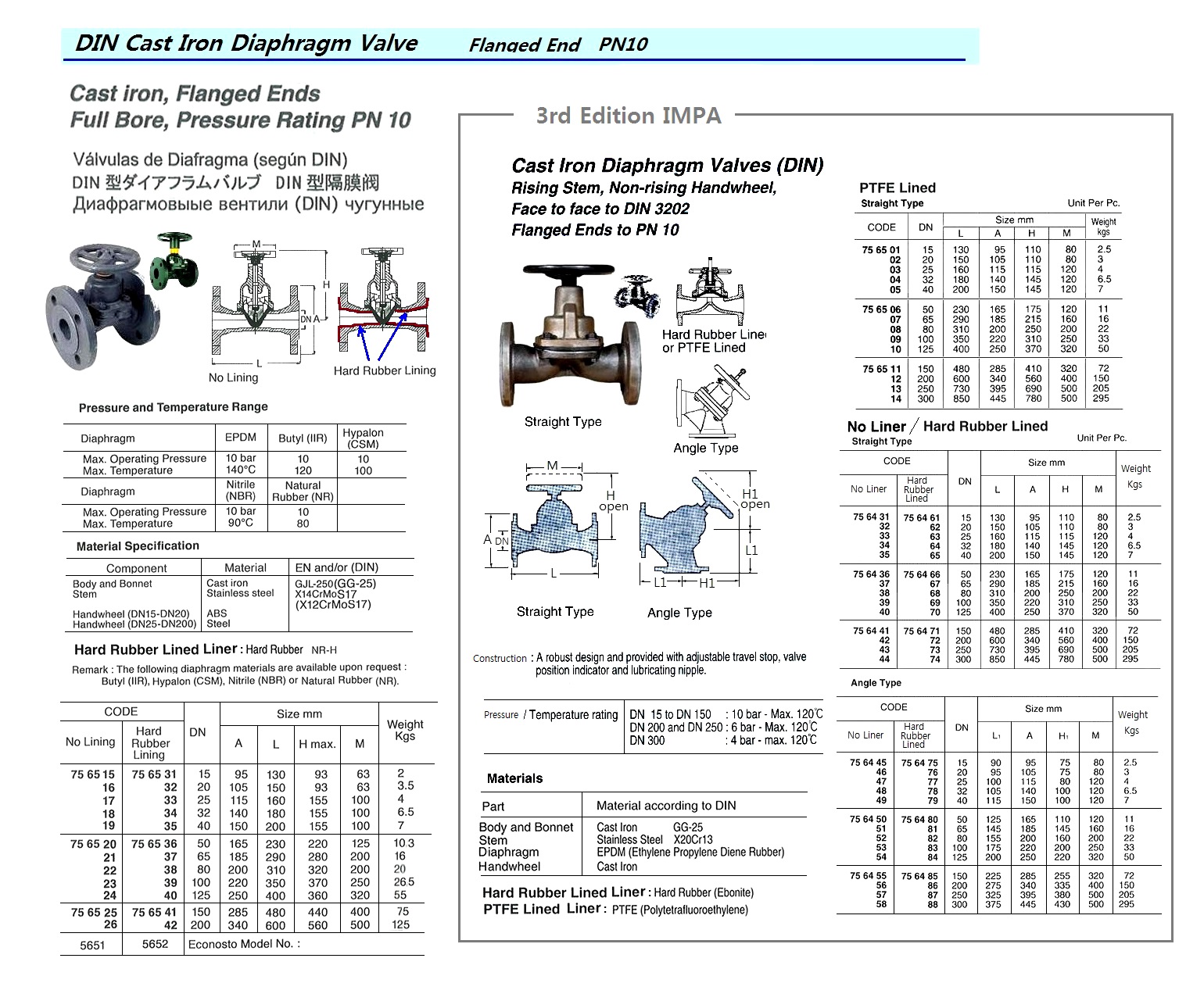

| 产品规格 | Full bore cast iron diaphragm valve, lined and unlined body. Flanged ends DIN PN 16. Position indicator with integrated stem protector and rising handwheel. Application: Cold and hot water, portable water, air, oil, abrasive and aggressive media. Suitability for application is partly depending on selected diaphragm and/or lining material. |
| 中文汉化 | 756522 隔膜阀 DIN标准 铸铁 PN10 全通径 无衬里 #5651 80MM -----描述-----：全通径铸铁隔膜阀，阀体有衬里和无衬里两种形式，法兰连接端符合DIN PN 16标准，配备带集成阀杆保护器的位置指示器和升降式手轮。适用于冷水和热水、饮用水、空气、油类、磨损性及腐蚀性介质。阀门的适用性部分取决于所选的隔膜和/或衬里材料。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
