阀门旋塞
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 756412 |
| 产品单位 | PCE |

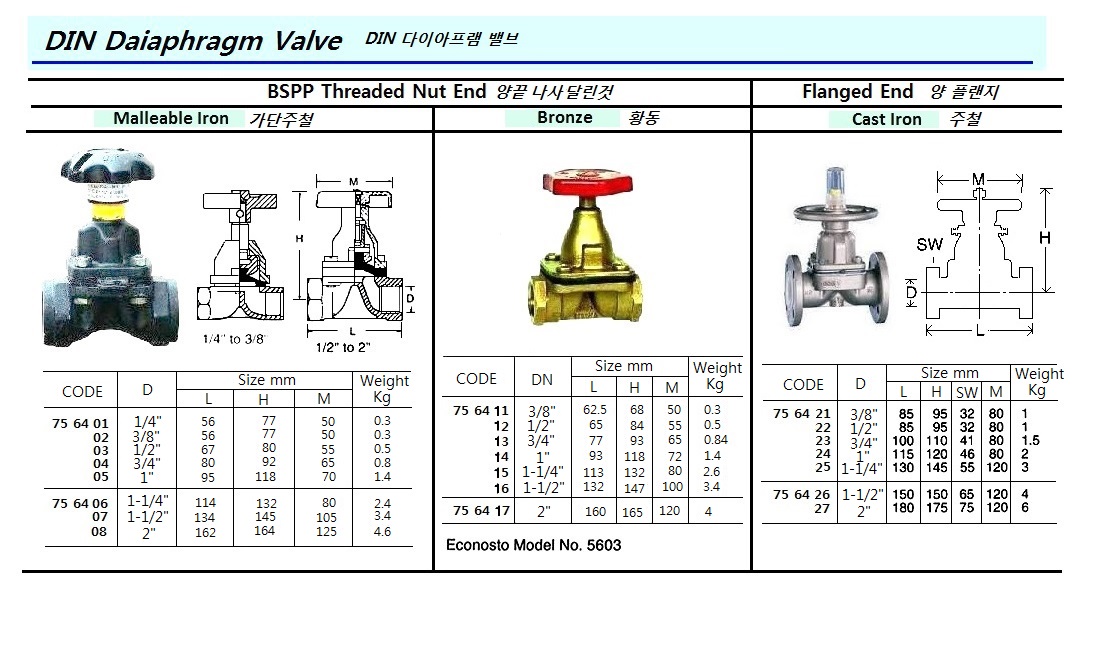

| 产品规格 | Weir type bronze diaphragm valve, BSP female threaded ends acc. to DIN 259, rising stem and handwheel. Application: In cold and warm water circuits for both tap water and central heating systems. As main valve in water and gas pipelines and in various industrial applications. The valve is KIWA type approved. Remark: Model 5603 with EPDM diaphragm may not be used for hot tap water in combination with copper piping. EPDM diaphragm will be supplied if not specified especially. |
| 中文汉化 | 756412 隔膜阀 DIN标准 螺纹连接 青铜 #5603 1/2" -----描述-----： weir型青铜隔膜阀，两端为BSP内螺纹，符合DIN 259标准，配备升降式阀杆和手轮。适用于冷水和暖水回路中的自来水和中央供暖系统，作为水和燃气管道中的主阀以及各种工业应用。该阀门已获得KIWA型式认证。备注：型号5603配备EPDM隔膜的阀门不可与铜管结合用于热水供应。若无特别指定，将提供EPDM隔膜。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
