阀门旋塞
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 756255 |
| 产品单位 | PCE |

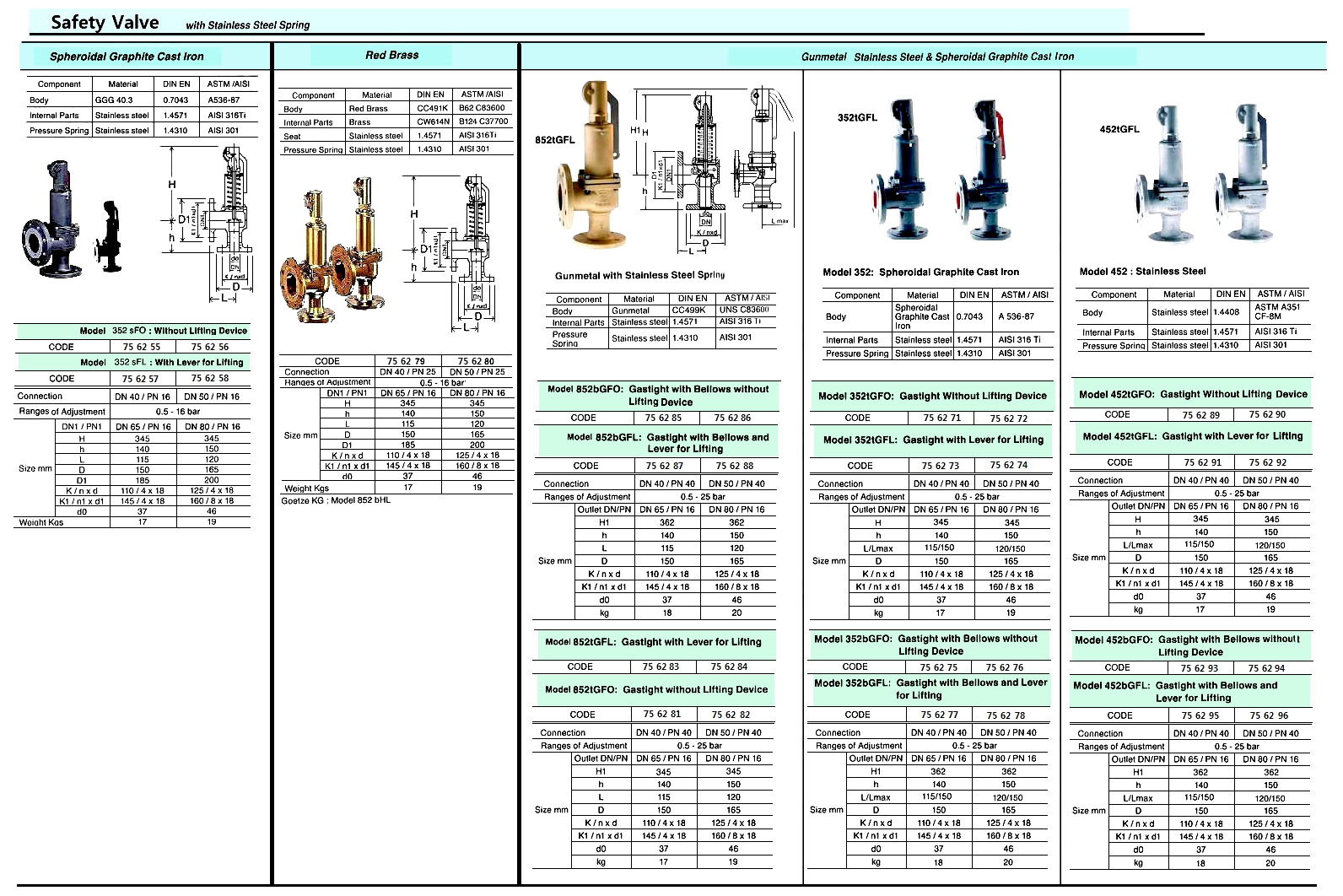

| 产品规格 | Angular shaped spring loaded safety valves made of spheroidal graphite cast iron (GGG 40.3) with stainless steel spring. Set pressure is protected by seal. Internal parts made of stainless steel. Suitable for the protection of pressure tanks and systems for neutral, non-sticking liquids, provided boiling temperature is not reached under atmospheric pressure. Available two types ; Model 352 F without lifting device, and Model 352 FL with lever for lifting. |
| 中文汉化 | 756255 安全阀 铸铁 #352SFO 无提升装置 DN40 PN16 -----描述-----：角型弹簧加载安全阀，采用球墨铸铁（GGG 40.3）材质，配有不锈钢弹簧，设定压力通过密封保护，内部零件由不锈钢制成，适用于保护中性、非粘性液体的压力容器和系统，前提是这些液体在大气压下的沸点不会被达到。提供两种型号：无提升装置的352 F型和配备提升杠杆的352 FL型。 |
| IMPA版本 | 8th Edition |
