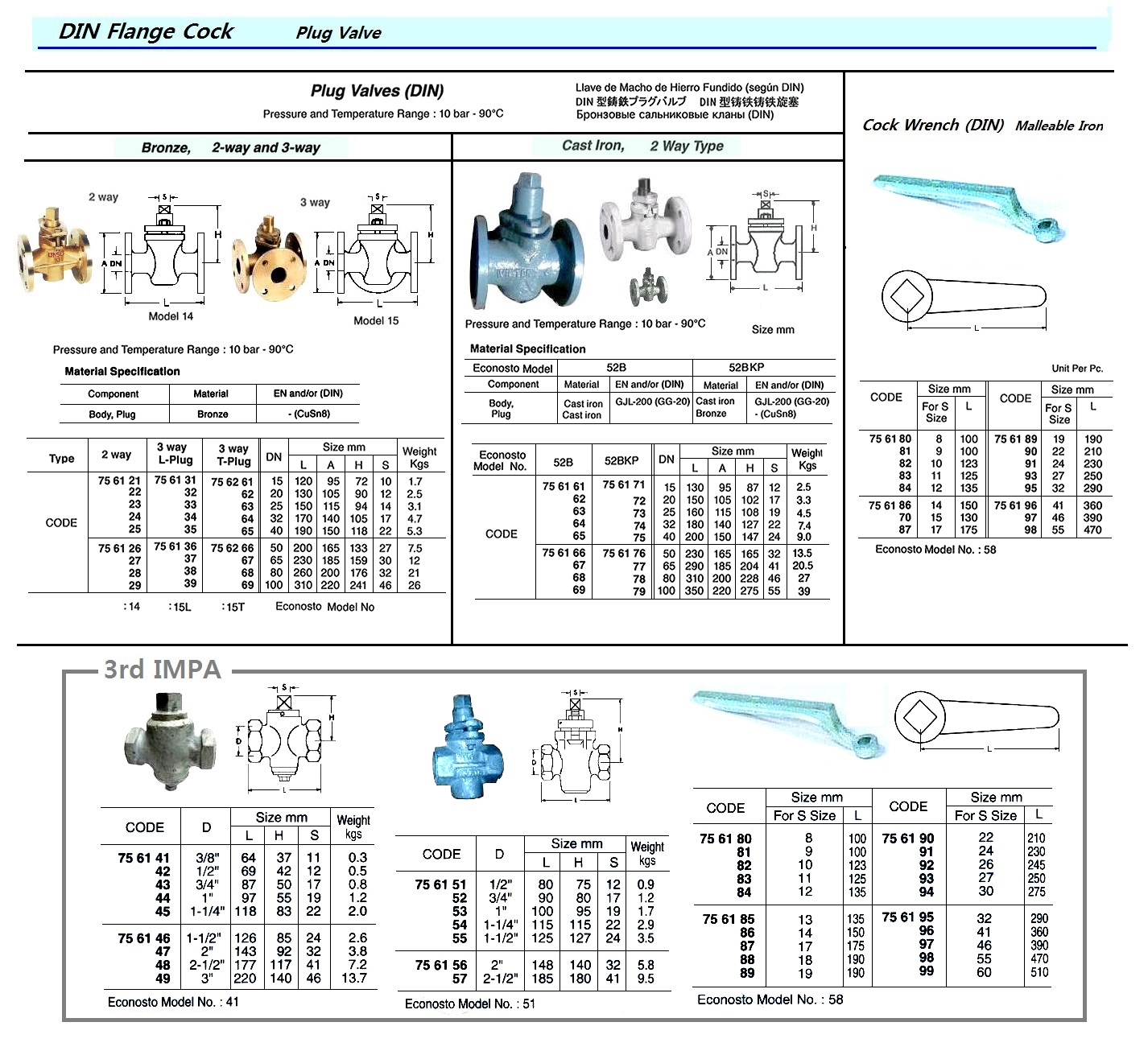

756173 PLUG VALVE DIN CAST IRON, FLANGED PN10 2-WAY #52BKP DN25

规格参数	参数值
IMPA编码	756173
产品单位	PCE
产品规格	Flanged plug valve in 2-way pattern. All versions are executed with gland packing. Cock wrench is available in separated order. Pressure and Temperature Range: 10 bar - 90oC
中文汉化	756173 旋塞阀 DIN标准铸铁法兰连接 PN10 二通 #52BKP DN25 -----描述-----：法兰连接式旋塞阀采用两通型设计，所有版本均配备填料密封，确保良好的密封性能和可靠性。操作扳手（Cock wrench）可作为独立配件订购，便于阀门的操作使用。该系列旋塞阀的压力和温度范围分别为10 bar和90°C，适用于中等压力和温度条件下的应用场合。这种设计不仅保证了在多种工况下的稳定性能，同时也提供了便捷的维护方式，是工业管道系统中流体控制的理想选择。无论是用于一般工业用途还是特定的应用环境，都能有效满足需求。
IMPA版本	8th Edition
