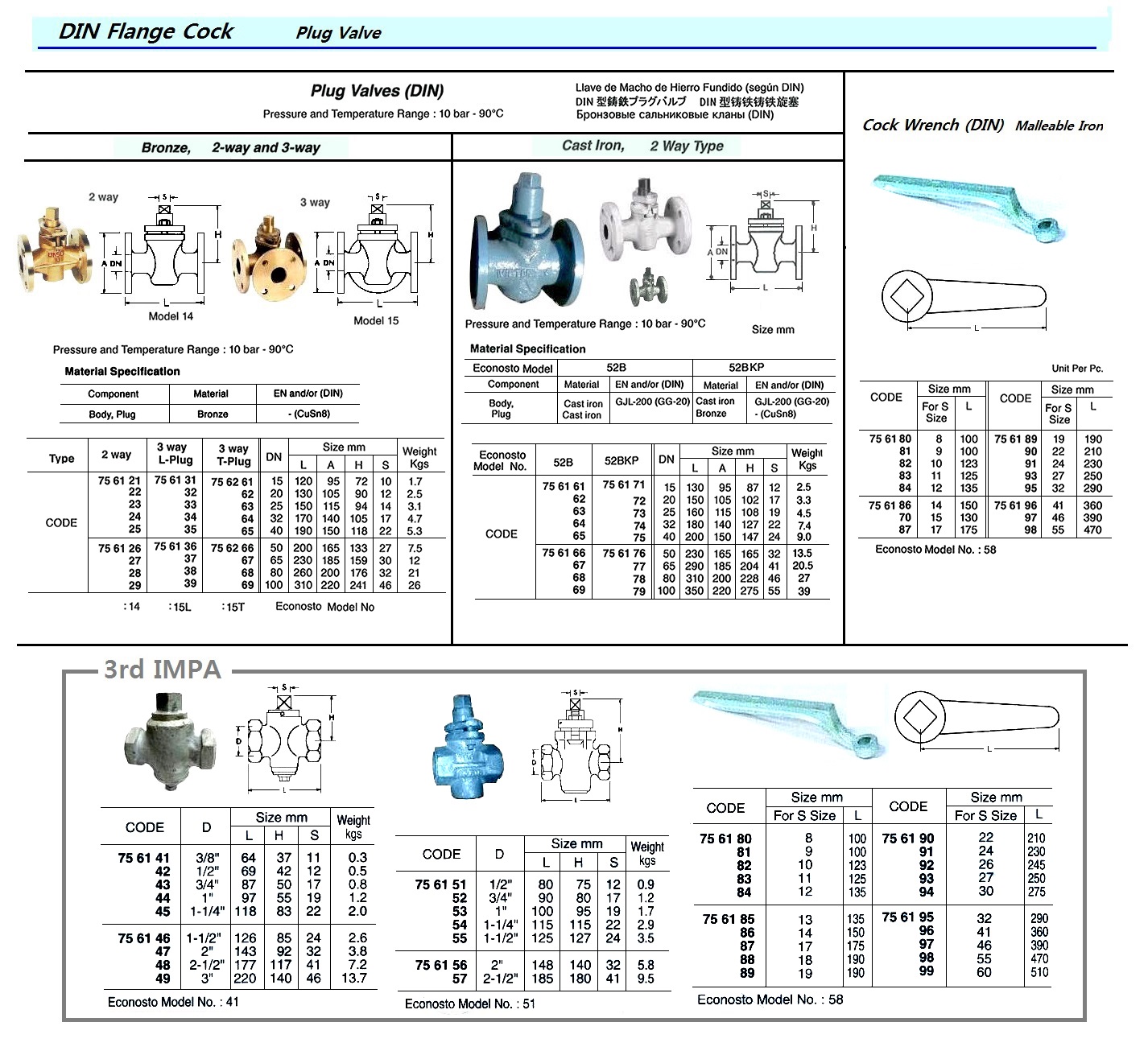

756124 PLUG VALVE DIN BRONZE FLANGED, PN10 2-WAY #14 DN 32

规格参数	参数值
IMPA编码	756124
产品单位	PCE
产品规格	Flanged plug valves are available in a 2 and 3 way patterns. The 3-way pattern is available with L or T-plug. All versions are executed with gland packing. With model 15L and 15T, as required by the Dutch shipping inspectorate, the dimensions of plug and valve body have been selected such that none of the ports can be undesirably interconnected with the plug in an intermediate position. Cock wrench is available in separated order.
中文汉化	756124 旋塞阀 DIN标准青铜法兰连接 PN10 二通 #14 DN32 -----描述-----：法兰连接式旋塞阀提供两通和三通两种结构形式，其中三通型可根据需求配备L型或T型旋塞。所有型号均采用填料密封设计，确保良好的密封性能。其中，型号15L和15T根据荷兰船级检验局的要求，特别优化了旋塞与阀体的尺寸配合，确保在旋塞处于中间位置时，各接口不会发生非预期的连通，从而提升操作安全性。操作扳手（Cock wrench）可作为选件单独订购。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
