756001 FIRE/DECKWASH VALVE DIN 30DEG., ANGLE COPPER ALLOY #905 1"

规格参数	参数值
IMPA编码	756001
产品单位	PCE

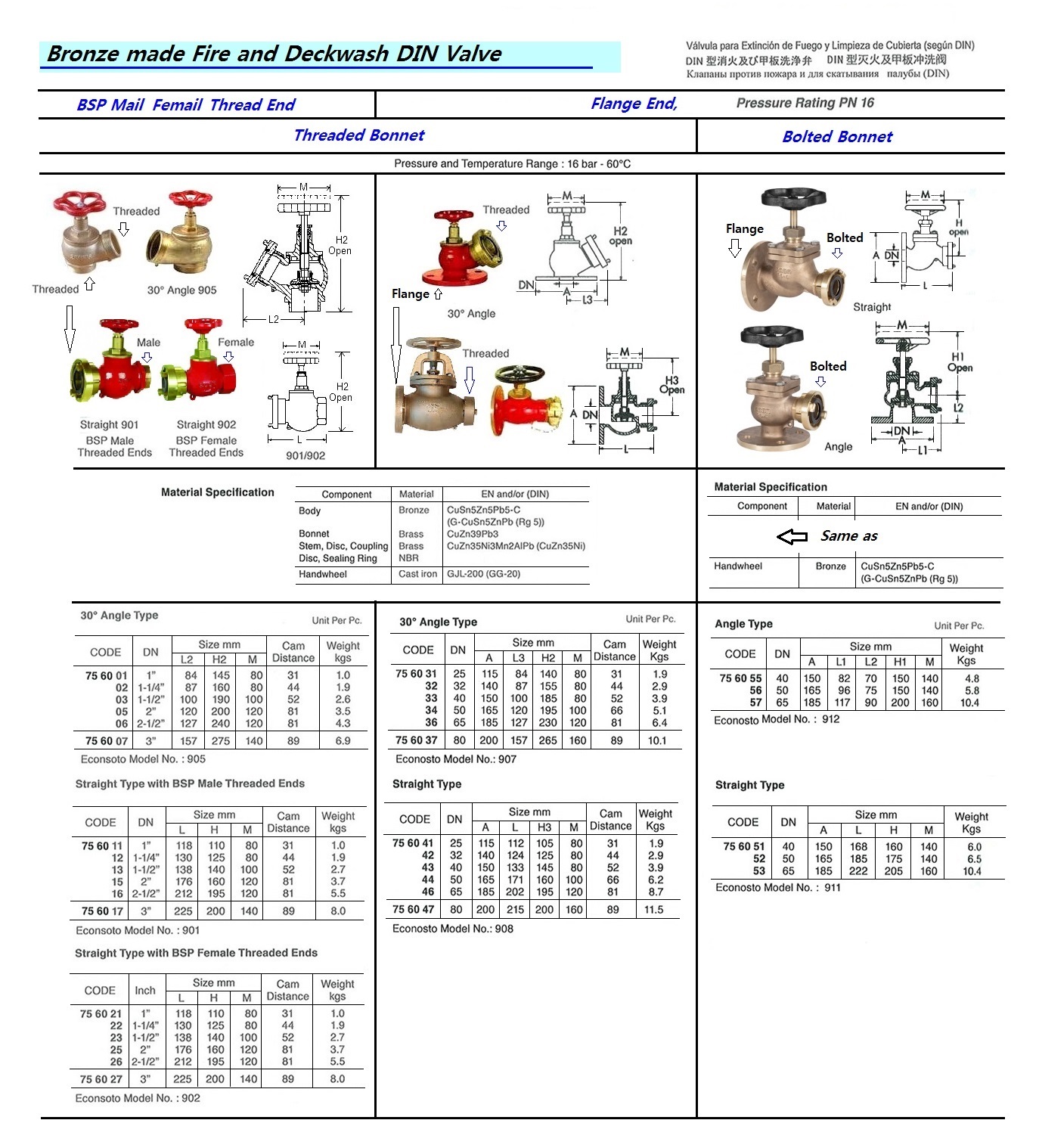

产品规格	Fire fighting valves with threaded ends are available in two patterns; straight and 30o angled, with BSP threaded inlet. Model 901, 902 and 905 are fitted standard with a “Storz” coupling on the outlet. These valves all feature a threaded bonnet.
中文汉化	756001 消防/甲板冲洗阀 DIN标准 30度角型铜合金 #905 1" -----描述-----：消防阀门提供两种形式：直通型和30度角型，均配备BSP螺纹入口，适用于不同的安装需求。型号901、902和905标准配置了出口处的“Storz”接头，便于快速连接。所有这些阀门均采用螺纹阀盖设计，确保了良好的密封性和易于维护的特性。这种设计使得阀门在消防系统中能够可靠地工作，同时也方便了安装和检修。无论是直通型还是角度型，都旨在为用户提供灵活且高效的消防解决方案。
IMPA版本	8th Edition
