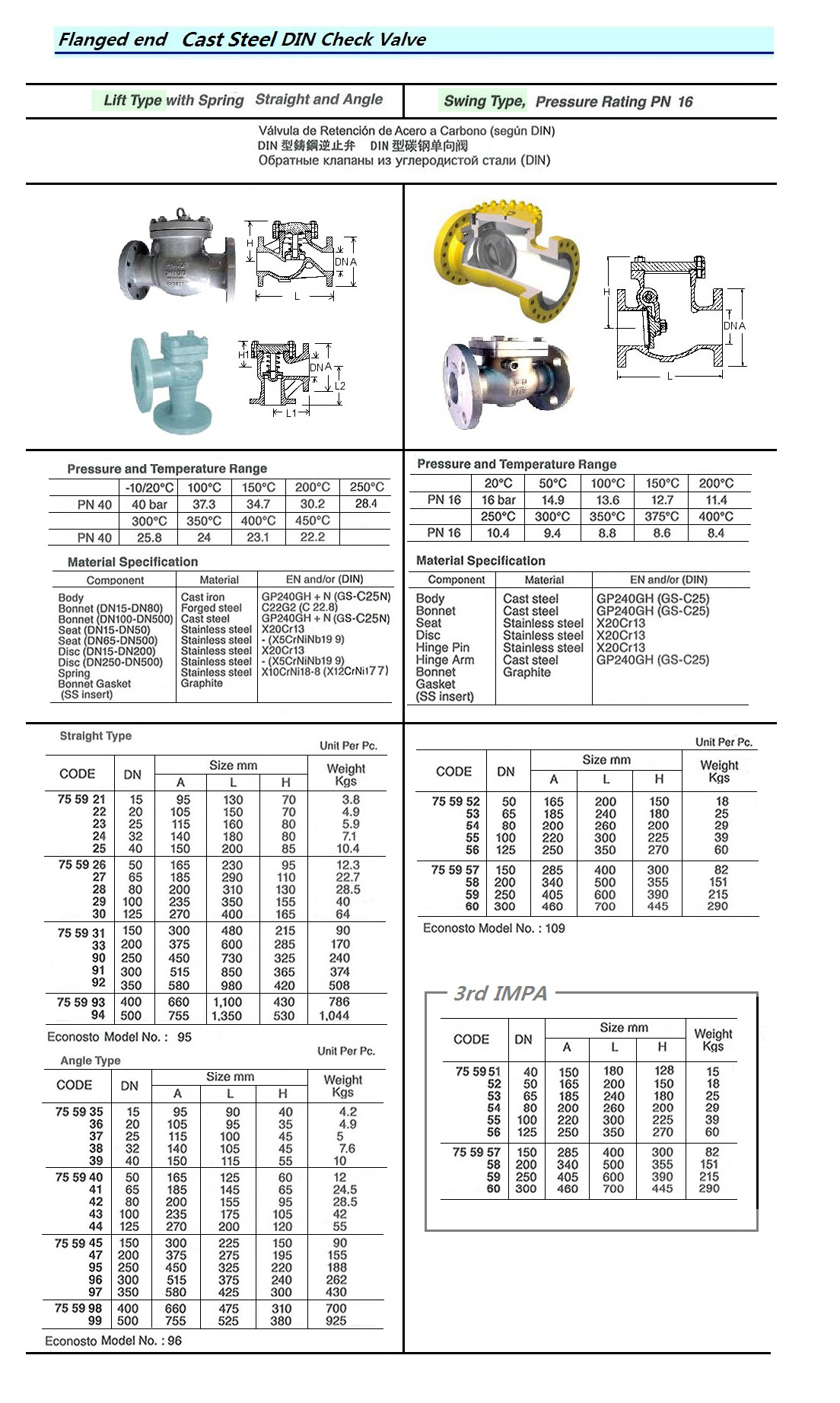

755960 CHECK VALVE DIN CAST STEEL, FLANGED SWING PN16 #109 DN 300

规格参数	参数值
IMPA编码	755960
产品单位	PCE
产品规格	Cast steel swing type check valves, stainless steel disc and seat, pressure rating DIN PN 16, straight pattern with bolted bonnet, full bore, flanged acc. to DIN PN 16. Suitable for horizontal and vertical (upward flow) installation. Application: general industrial use, such as hot water installations, aboard ships for ships side, etc.
中文汉化	755960 止回阀 DIN标准铸钢法兰连接旋启式 PN16 #109 DN 300 -----描述-----：这种铸钢旋启式止回阀配备不锈钢阀盘和阀座，压力等级为DIN PN 16，采用直通型全通径设计，配有螺栓连接阀盖，法兰符合DIN PN 16标准。该阀门适用于水平安装和垂直向上流动的安装方式，广泛应用于一般工业场合，如热水系统、船舶侧管道等。其设计确保了在多种工况下的可靠性和耐久性，特别适合需要防止逆流保护的应用环境。无论是用于工业设施还是船舶上的流体控制系统，它都是一个理想的选择，能够有效应对各种介质的控制需求。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
