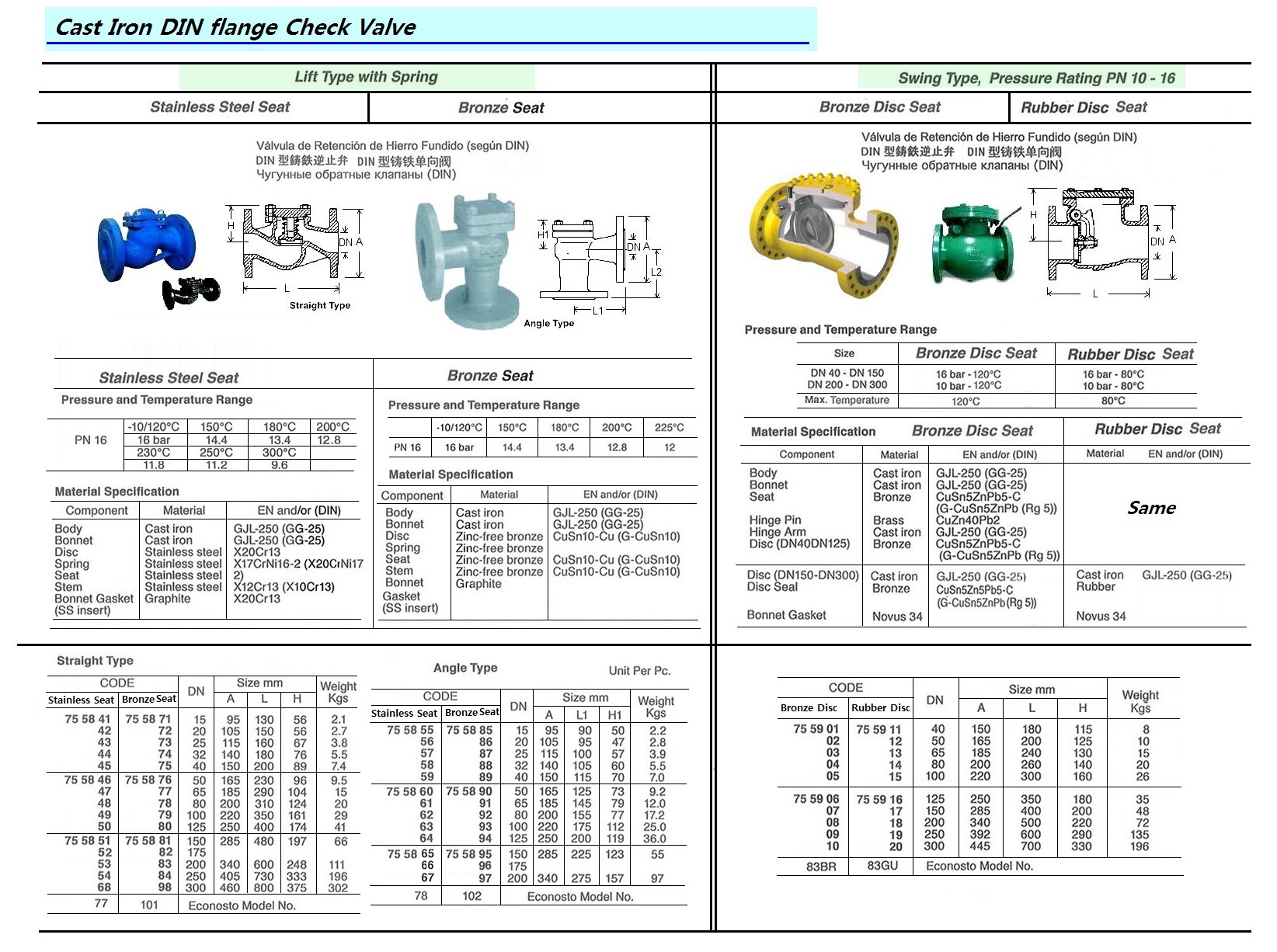

755916 CHECK VALVE DIN C/IRON FLANGED, SWING TYPE PN16 #83GU 125MM

规格参数	参数值
IMPA编码	755916
产品单位	PCE
产品规格	Cast iron swing type check valves, bronze seat or rubber seal, pressure rating PN 10/16, straight pattern, full bore, bolted bonnet, flanges acc. to DIN 10/16 and flange drilling acc. to DIN PN 10/16. Suitable for horizontal and vertical (upward flow) installation. Model 83GU has a rubber seal. Application area: cold and hot water, fresh and seawater.
中文汉化	755916 止回阀 DIN标准铸铁法兰连接旋启式 PN16 #83GU 125MM -----描述-----：这种铸铁旋启式止回阀配备青铜阀座或橡胶密封，压力等级为PN 10/16，采用直通型全通径设计，配有螺栓连接阀盖，法兰符合DIN PN 10/16标准且法兰钻孔也符合DIN PN 10/16。该阀门适用于水平安装和垂直向上流动的安装方式。其中，型号83GU配备了橡胶密封。其应用范围包括冷水和热水、淡水及海水等多种介质的管路系统。这种设计确保了在多种工况下的可靠性和耐久性，特别适合需要防止逆流保护的应用场合，无论是对于船舶还是陆地上的水处理设施，都是一个理想的选择。
IMPA版本	8th Edition
