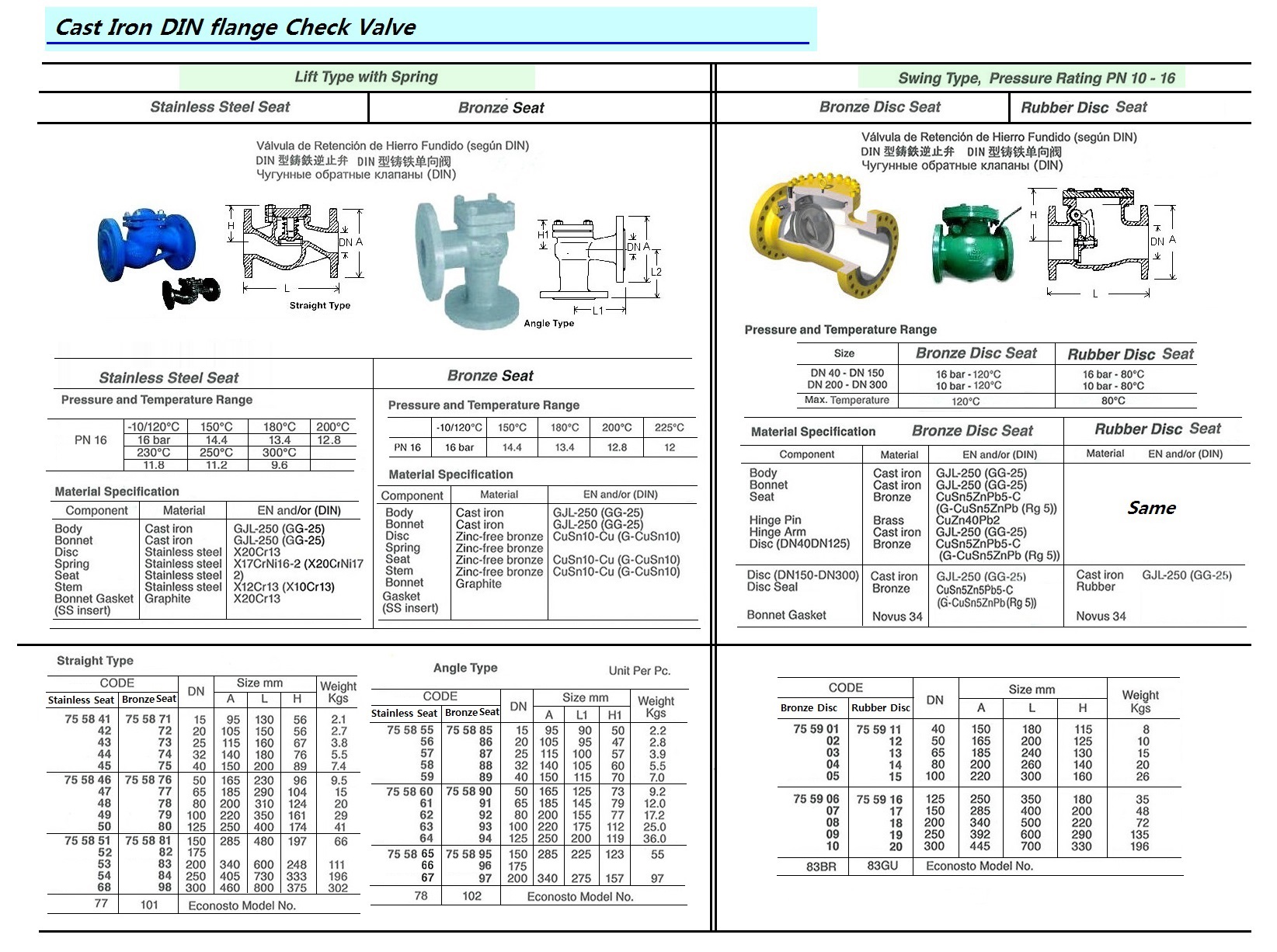

755905 CHECK VALVE DIN C/IRON FLANGED, SWING TYPE PN16 #83BR 100MM

规格参数	参数值
IMPA编码	755905
产品单位	PCE
产品规格	Cast iron swing type check valves, bronze seat or rubber seal, pressure rating PN 10/16, straight pattern, full bore, bolted bonnet, flanges acc. to DIN PN 10/16 and flange drilling acc. to DIN PN 10/16. Suitable for horizontal and vertical (upward flow) installation. Model 83BR has a bronze seat. Application area: cold and hot water, fresh and seawater.
中文汉化	755905 止回阀 DIN标准铸铁法兰连接旋启式 PN16 #83BR 100MM -----描述-----：这种铸铁旋启式止回阀配备青铜阀座或橡胶密封，压力等级为PN 10/16，采用直通型全通径设计，配有螺栓连接阀盖，法兰符合DIN PN 10/16标准且法兰钻孔也符合DIN PN 10/16。该阀门适用于水平安装和垂直向上流动的安装方式。其中，型号83BR配备了青铜阀座。其应用范围包括冷水和热水、淡水及海水等多种介质的管路系统。
IMPA版本	8th Edition
