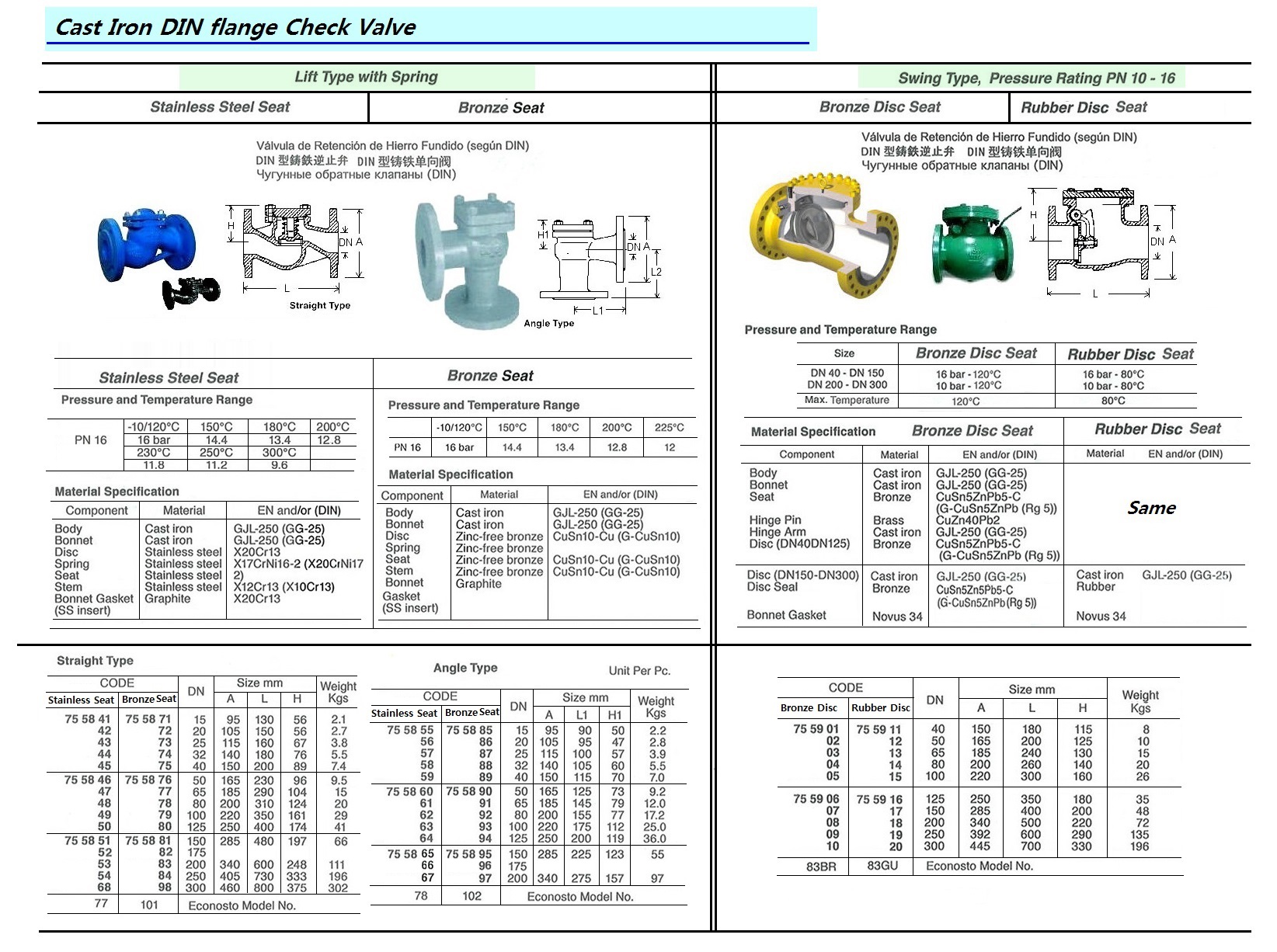

755877 CHECK VALVE DIN C/IRON FLANGED, LIFT TYPE PN16 #101 DN 65

规格参数	参数值
IMPA编码	755877
产品单位	PCE
产品规格	Cast iron life type check valves with zinc-free bronze disc and seat, spring loaded disc, pressure rating PN 16, straight and angle pattern with bolted bonnet, flanges acc. to DIN PN 16. Suitable for horizontal and vertical (upward flow) installation. Application area: maritime use in particular, due to the zinc free bronze trim. Application: in particular for cold and warm (sea) water, air, gases, other neutral media.
中文汉化	755877 止回阀 DIN标准铸铁法兰连接升降式 PN16 #101 DN 65 -----描述-----：该铸铁升降式止回阀配备无锌青铜阀盘和阀座，并带有弹簧加载阀盘，压力等级为PN 16，提供直通型和角型两种结构形式，采用螺栓连接阀盖和符合DIN PN 16标准的法兰连接，适用于水平以及垂直向上流动的安装方式。由于采用无锌青铜内件，特别适合用于船舶及海洋环境，广泛应用于冷水和温水（海水）、空气、气体及其他中性介质的管路系统中。该阀门具有良好的耐腐蚀性能，能够在恶劣的海洋环境中保持稳定运行，是船舶和海上设施流体控制系统中的理想选择。
IMPA版本	8th Edition
