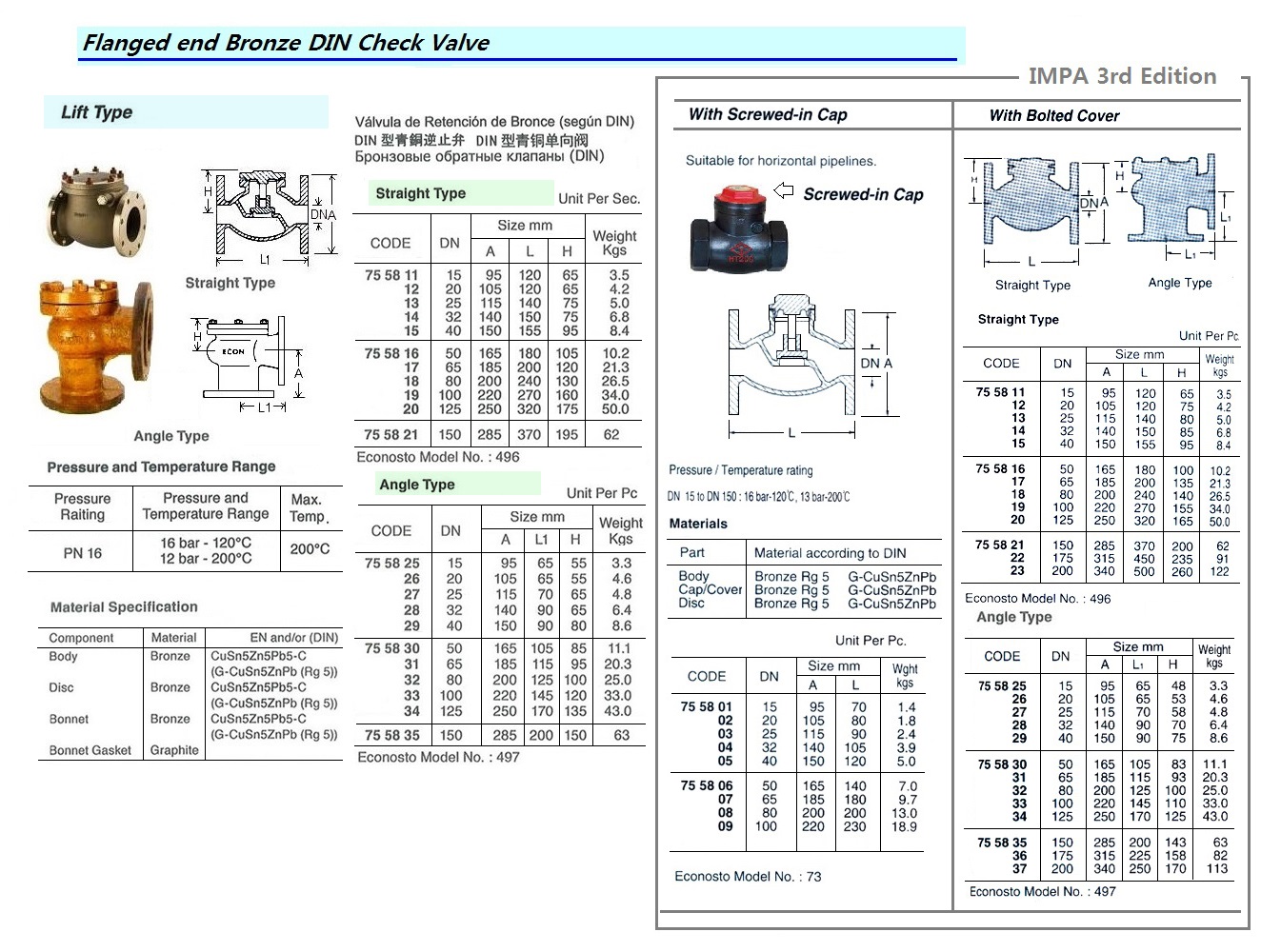

755814 CHECK VALVE DIN BRONZE FLANGED, LIFT TYPE PN10/16 #496 32MM

规格参数	参数值
IMPA编码	755814
产品单位	PCE
产品规格	Bronze lift type check valves with bronze disc and seat, pressure rating PN 16, straight and angle pattern, flat faced flanges as per DIN PN 16 and bolted bonnet. Only suitable for installation in horizontal pipelines. These check valves offer very good resistance to the corrosive action of seawater, fresh water and waste water. Application area : aboard ships but also in installations where corrosion (in- or external) is undesirable.
中文汉化	755814 止回阀 DIN标准青铜法兰连接升降式 PN10/16 #496 32MM -----描述-----：该青铜升降式止回阀采用青铜阀盘和阀座，压力等级为PN 16，提供直通型和角型两种结构形式，法兰连接为DIN PN 16标准的平面法兰，并配有螺栓连接阀盖。该阀门仅适用于水平管道安装，具有优异的抗海水、淡水及废水腐蚀能力，广泛应用于船舶系统，也适用于对内外部腐蚀有严格要求的其他安装场合。结构可靠、耐腐蚀性强，是恶劣介质环境中理想的流体控制解决方案。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
