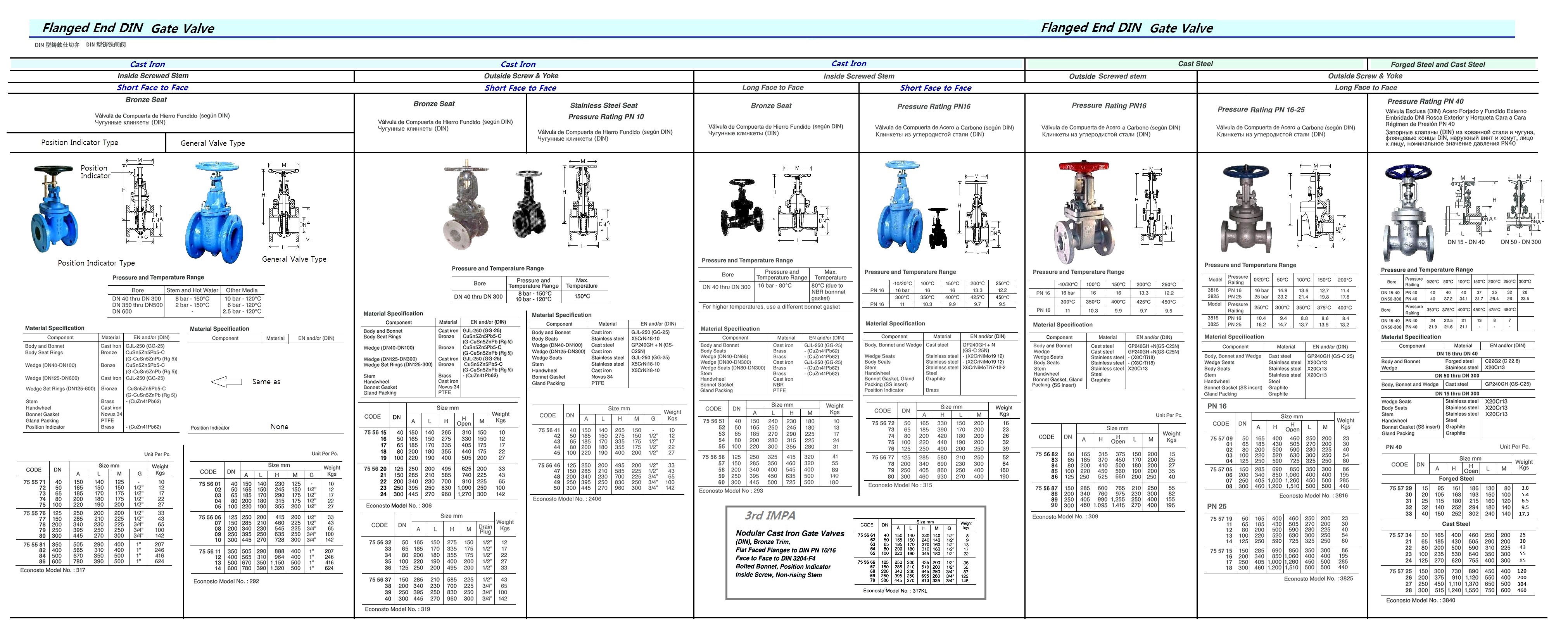

755659 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 250MM

规格参数	参数值
IMPA编码	755659
产品单位	PCE
产品规格	Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.
中文汉化	755659 闸阀 DIN标准铸铁法兰连接 PN10 #293 250MM -----描述-----：该铸铁闸阀配备黄铜阀座，压力等级为 PN 16，法兰连接端符合 DIN PN 10/16 标准，采用螺栓连接阀盖、内螺纹阀杆结构，具有非升降式阀杆和手轮，并配以实心楔形闸板。面到面尺寸较长，依据 EN 558-1 第15条（等同于 DIN 3202-F5）。该阀门标准适用于冷水和温水系统的控制，具备良好的密封性能与结构稳定性，是工业及民用建筑中水系统管路上的理想选择。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
