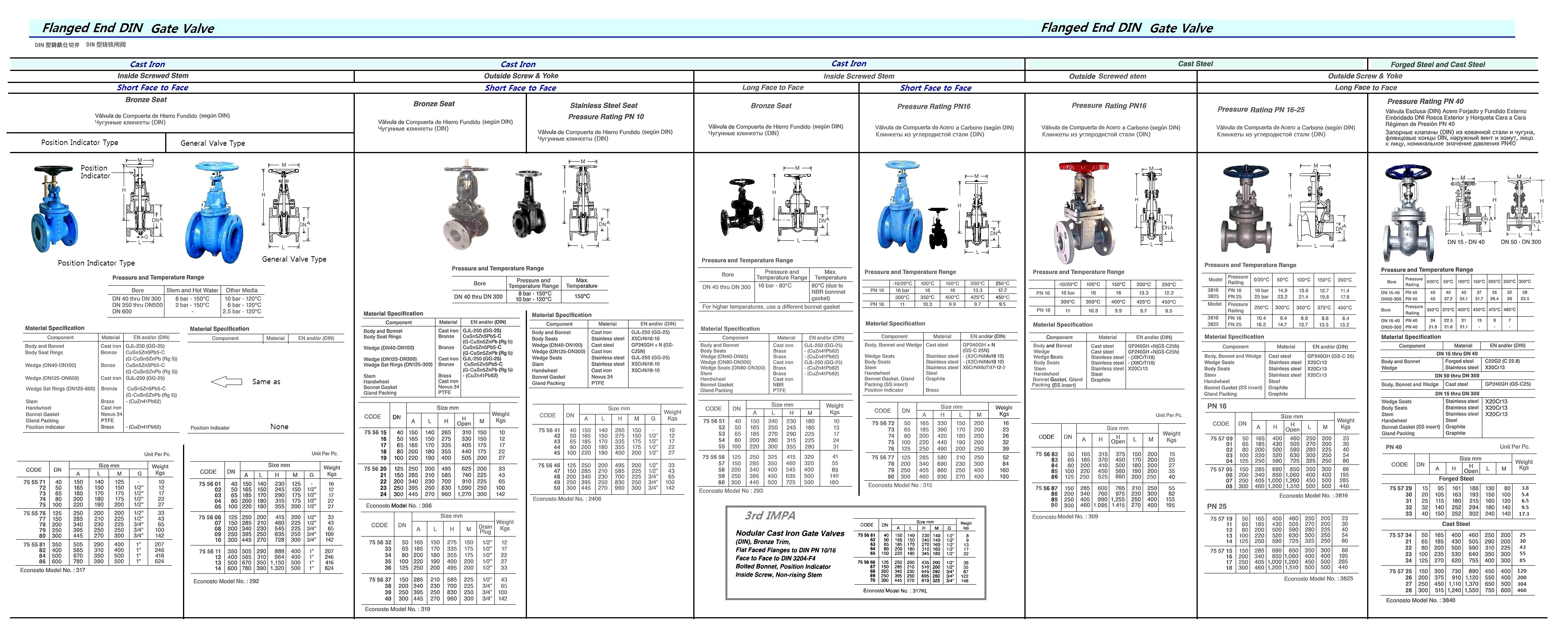

755643 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 65MM

规格参数	参数值
IMPA编码	755643
产品单位	PCE
产品规格	Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.
中文汉化	755643 闸阀 DIN标准铸铁法兰连接 PN10 #2406 65MM -----描述-----：该铸铁闸阀配备不锈钢阀座，压力等级为 PN 10，法兰连接端符合 DIN PN 10 标准，采用螺栓连接阀盖、外螺纹与 Y 型支架（OS&Y）结构，具有升降式阀杆和非升降手轮，配实心楔形闸板。阀门还设有排水塞和注脂嘴，面到面尺寸短，符合 EN 558-1 第14条（等同于 DIN 3202-F4）。由于不含铜质部件，特别适用于腐蚀性介质环境，如冷水和热水、润滑油、蒸汽等，广泛用于对耐腐蚀性要求较高的工业场合，具备良好的密封性能、操作稳定性和维护便利性，是恶劣工况下流体控制的理想选择。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
