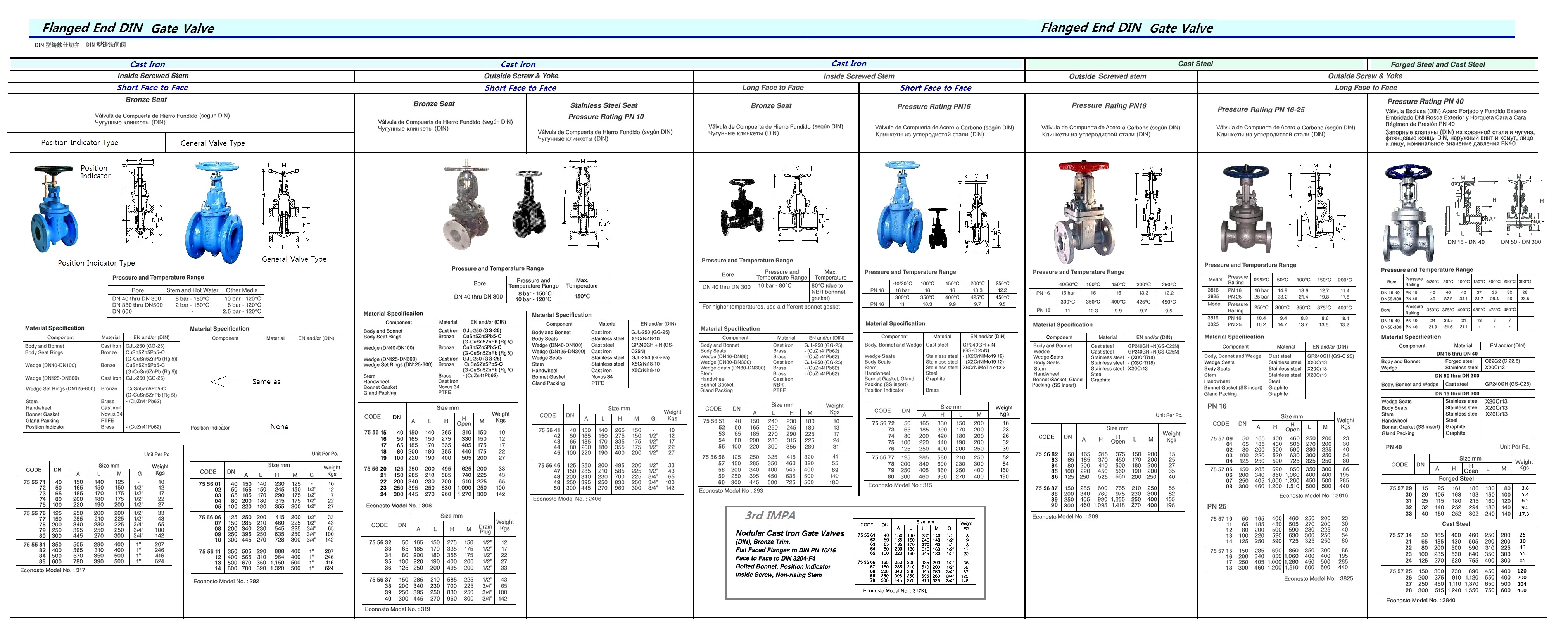

755621 GATE VALVE DIN CAST IRON, FLANGED PN10 #306 150MM

规格参数	参数值
IMPA编码	755621
产品单位	PCE
产品规格	Cast iron gate valve with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Purpose: cold and hot fresh water, saltwater, lubricating oil, steam etc.
中文汉化	755621 闸阀 DIN标准铸铁法兰连接 PN10 #306 150MM -----描述-----：该铸铁闸阀配备青铜阀座，压力等级为PN 10，法兰连接端符合DIN PN 10标准，采用螺栓连接阀盖、外螺纹与Y型支架（OS&Y）结构，并配有升降式阀杆、非升降手轮及实心楔形闸板，面到面尺寸依据EN 558-1第14条（等同于DIN 3202-F4），结构紧凑。适用于冷水和热水、盐水、润滑油、蒸汽等多种介质，在工业及船舶应用中表现出良好的耐腐蚀性和密封性能。外螺纹与Y型支架设计使阀杆在操作时上升，便于直观判断阀门开闭状态，确保操作安全可靠，是流体控制系统中的理想选择。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
