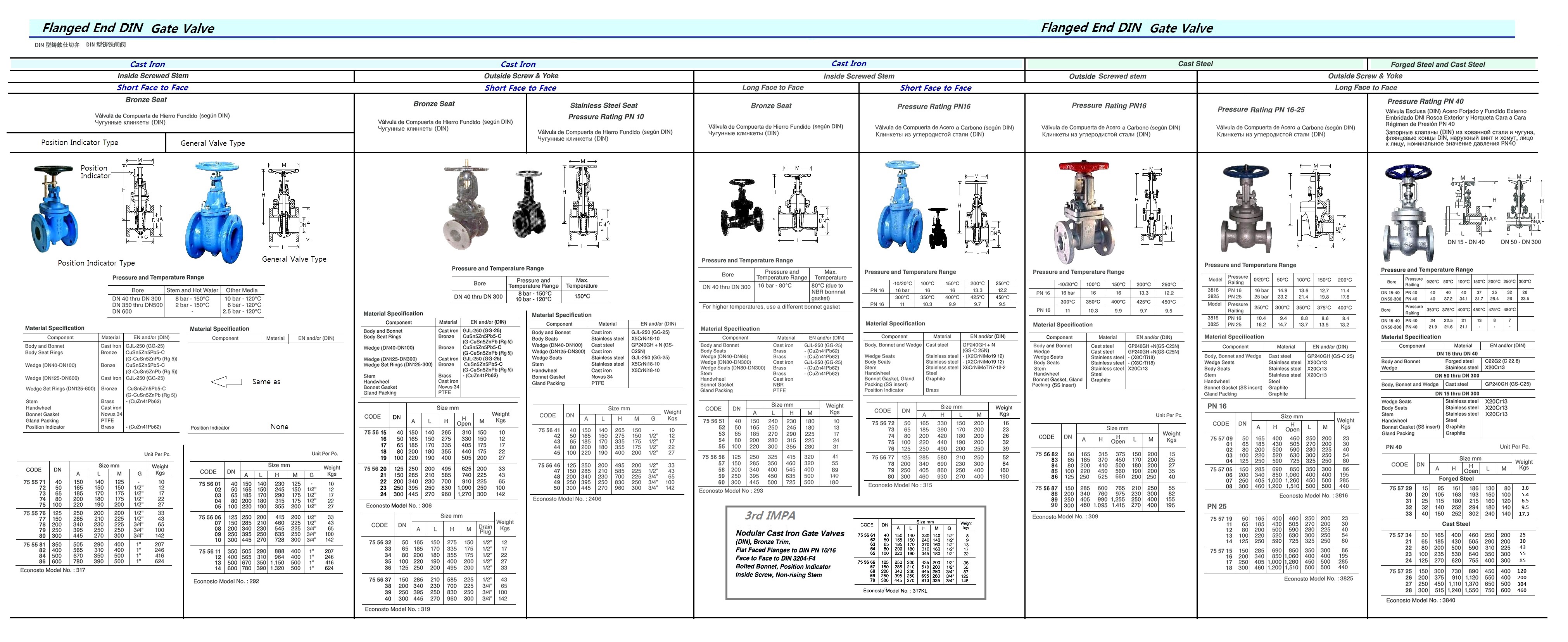

755612 GATE VALVE DIN CAST IRON, FLANGED PN10 #292 400MM

规格参数	参数值
IMPA编码	755612
产品单位	PCE
产品规格	Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, seawater, lubricating oil steam etc.
中文汉化	755612 闸阀 DIN标准铸铁法兰连接 PN10 #292 400MM -----描述-----：这种铸铁闸阀配备青铜阀座，压力等级为PN 2.5/6/10，法兰连接端符合DIN PN 10标准。阀门采用螺栓固定阀盖、内螺纹阀杆、非升降式阀杆和手轮设计，并配有实心楔形闸板。其面到面尺寸依据EN 558-1第14条（等同于DIN 3202-F4），并且该型号标配位置指示器和排水塞。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
