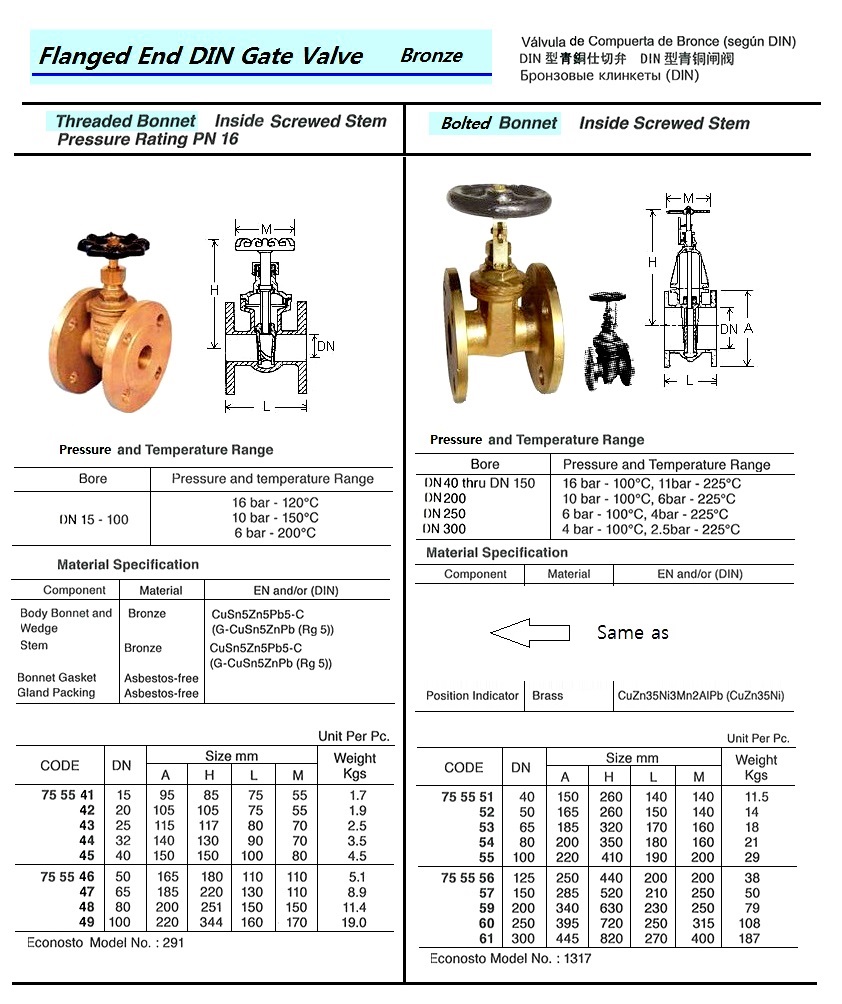

755554 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 80MM

规格参数	参数值
IMPA编码	755554
产品单位	PCE
产品规格	Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.
中文汉化	755554 闸阀 DIN标准青铜法兰连接 PN10/16 #1317 80MM -----描述-----：该青铜闸阀采用青铜楔形闸板和阀座，压力等级为PN 4/6/10/16，法兰连接端为平面（Flat Face）结构，符合DIN PN 10/16标准。阀门配备螺栓连接阀盖、内置位置指示器、内螺纹阀杆、非升降式阀杆及手轮操作装置，面到面尺寸依据EN 558-1第14条（等同于DIN 3202-F4），适用于标准化安装。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
