75. Valves & Cocks

阀门旋塞

00. Provisions 10. Whisky & Cigaretes 11. Welfare Items 15. Cloth & Linen Products 17. Tableware & Galley Utensils 19. Clothing 21. Rope & Hawsers 23. Rigging Equipment & General Deck Items 25. Marine Paint 27. Painting Equipment 31. Safety Protective Gear 33. Safety Equipment 35. Hose & Couplings 37. Nautical Equipment 39. Medicine 45. Petroleum Products 47. Stationery 49. Hardware 51. Brushes & Mats 53. Lavatory Equipment 55. Cleaning Material & Chemicals 59. Pneumatic & Electrical Tools 61. Hand Tools 63. Cutting Tools 65. Measuring Tools 67. Metal Sheets Bar sEtc 69. Screws & Nuts 71. Pipes & Tubes 73. Pipe & Tube Fittings 75. Valves & Cocks 77. Bearings 79. Electrical Equipment 81. Packing & Jointing 85. Welding Equipment 87. Machinery Equipment 99. Fishing Tools Genel

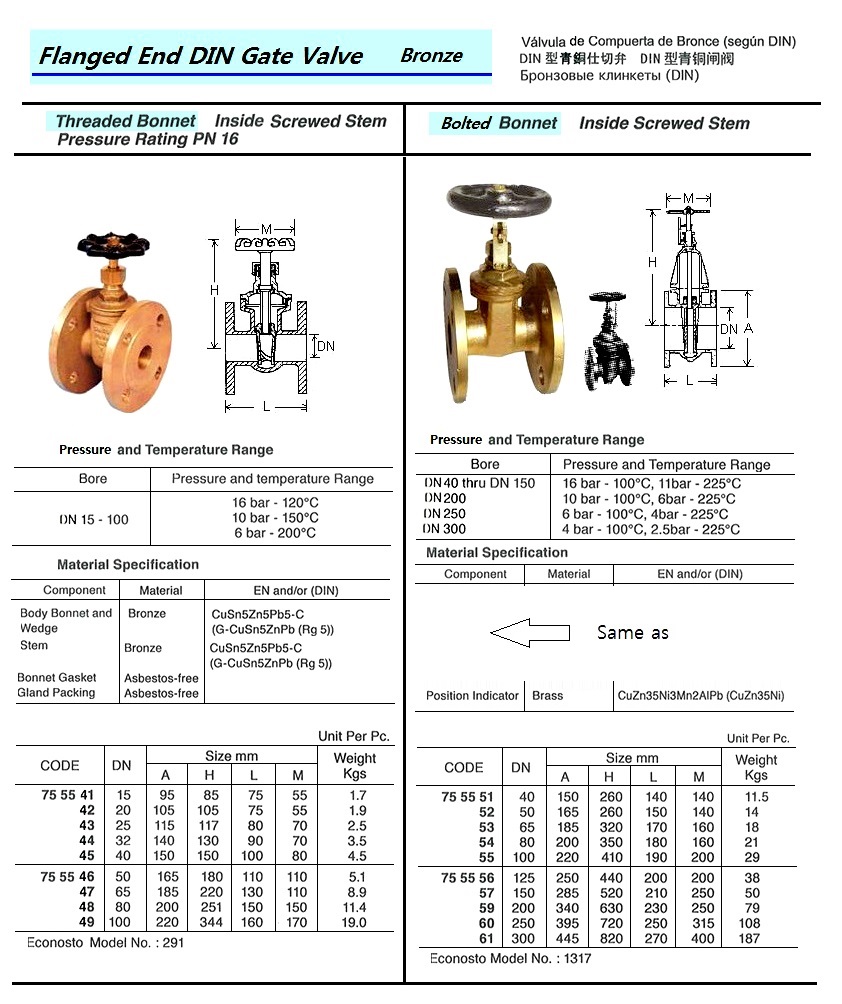

755552 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 50MM

规格参数	参数值
IMPA编码	755552
产品单位	PCE
产品规格	Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.
中文汉化	755552 闸阀 DIN标准青铜法兰连接 PN10/16 #1317 50MM -----描述-----：该青铜闸阀采用青铜楔形闸板和阀座，压力等级为PN 4/6/10/16，法兰连接端为平面（Flat Face）结构，符合DIN PN 10/16标准。阀门配备螺栓连接阀盖、内置位置指示器、内螺纹阀杆、非升降式阀杆及手轮操作装置，面到面尺寸依据EN 558-1第14条（等同于DIN 3202-F4），适用于标准化安装。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
