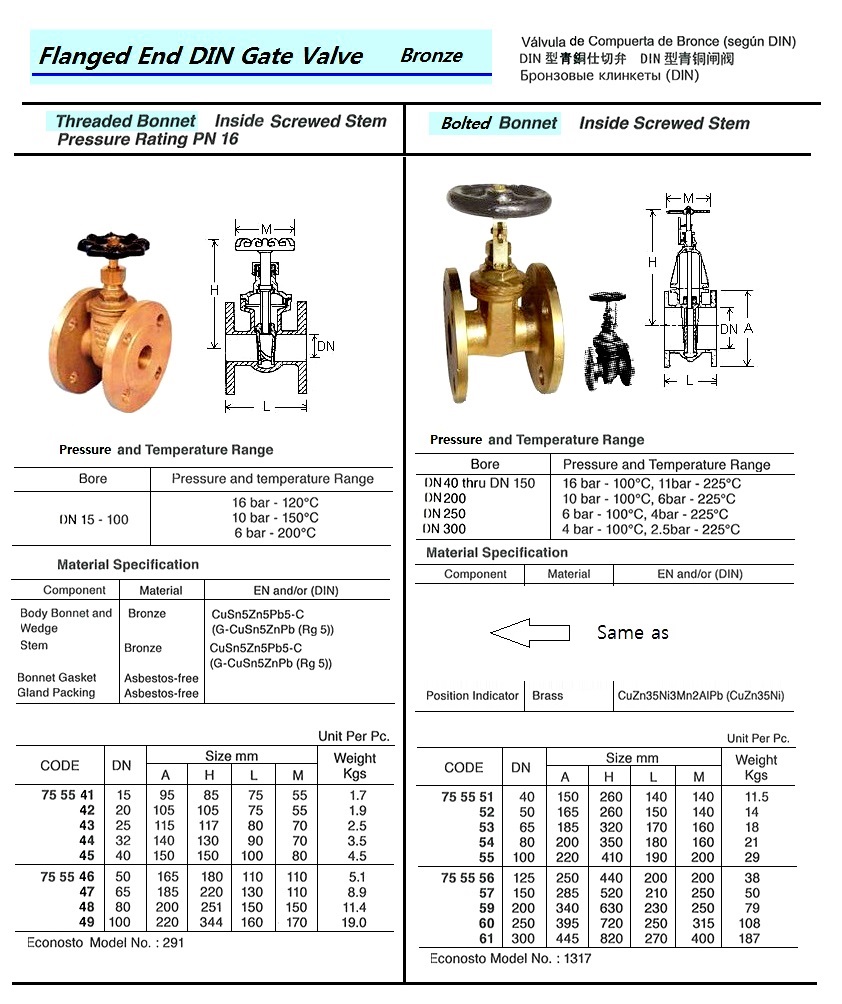

755546 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 50MM

规格参数	参数值
IMPA编码	755546
产品单位	PCE
产品规格	Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.
中文汉化	755546 闸阀青铜 DIN标准法兰连接 PM10/16 #291 50MM -----描述-----：该青铜闸阀采用青铜楔形闸板和阀座，压力等级为PN 16，法兰连接端为平面（Flat Face）结构，符合DIN PN 10/16标准。阀门配备螺纹阀盖、内螺纹阀杆、非升降式阀杆及手轮操作装置，结构紧凑且便于维护。面到面尺寸依据EN 558-1第47条（等同于DIN 3202-F19），适用于标准化安装。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
