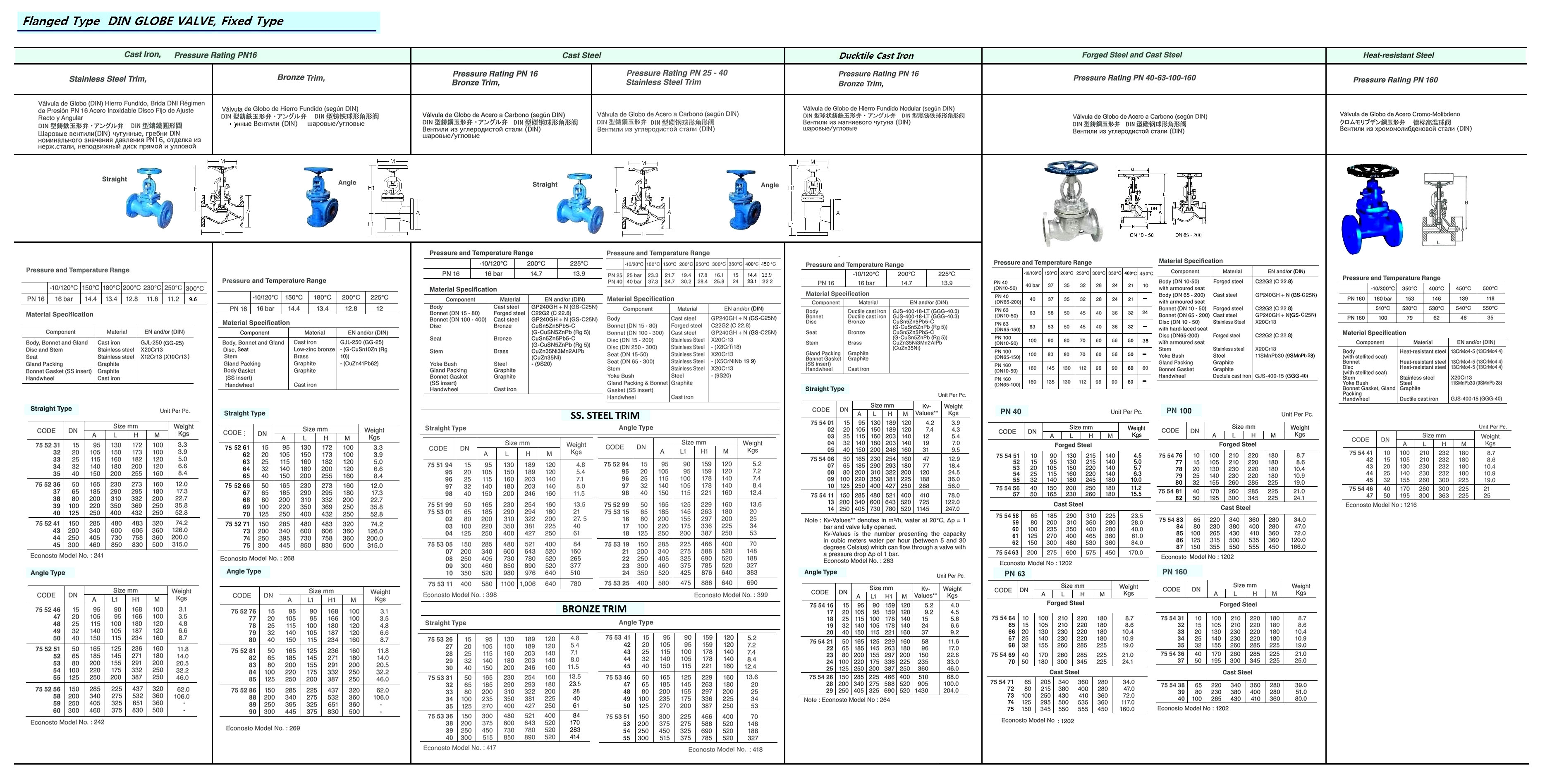

755268 GLOBE VALVE DIN CAST IRON, FLANGED PN10/16 #268 80MM

规格参数	参数值
IMPA编码	755268
产品单位	PCE
产品规格	Cast iron globe valves with low-zinc bronze seat, pressure rating PN 16, straight and angle pattern, flanged ends acc. to DIN PN 10/16. Outside screw & yoke and rising handwheel. Application : Aboard ships for hot and cold water, oil, air, steam etc.
中文汉化	755268 截止阀 DIN标准铸铁法兰 PN10/16 #268系列 80mm -----描述-----：该铸铁截止阀配备低锌青铜阀座，压力等级为PN 16，提供直通型和角型两种结构形式，法兰连接端符合DIN PN 10/16标准，采用外螺纹与Y型支架（OS&Y）设计及上升手轮操作方式。适用于船舶上热水、冷水、油、空气和蒸汽等介质的管路系统，在满足多种工况需求的同时具备良好的耐腐蚀性和密封性能。其结构设计确保了在船舶环境中的可靠运行，也适用于其他需防止内部腐蚀的工业场合，是实现高效流体控制的理想选择。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
