755181 ANGLE VALVE DIN BRONZE FLANGED, PN10/16 HEAVY TYPE #1271 50MM

规格参数	参数值
IMPA编码	755181
产品单位	PCE

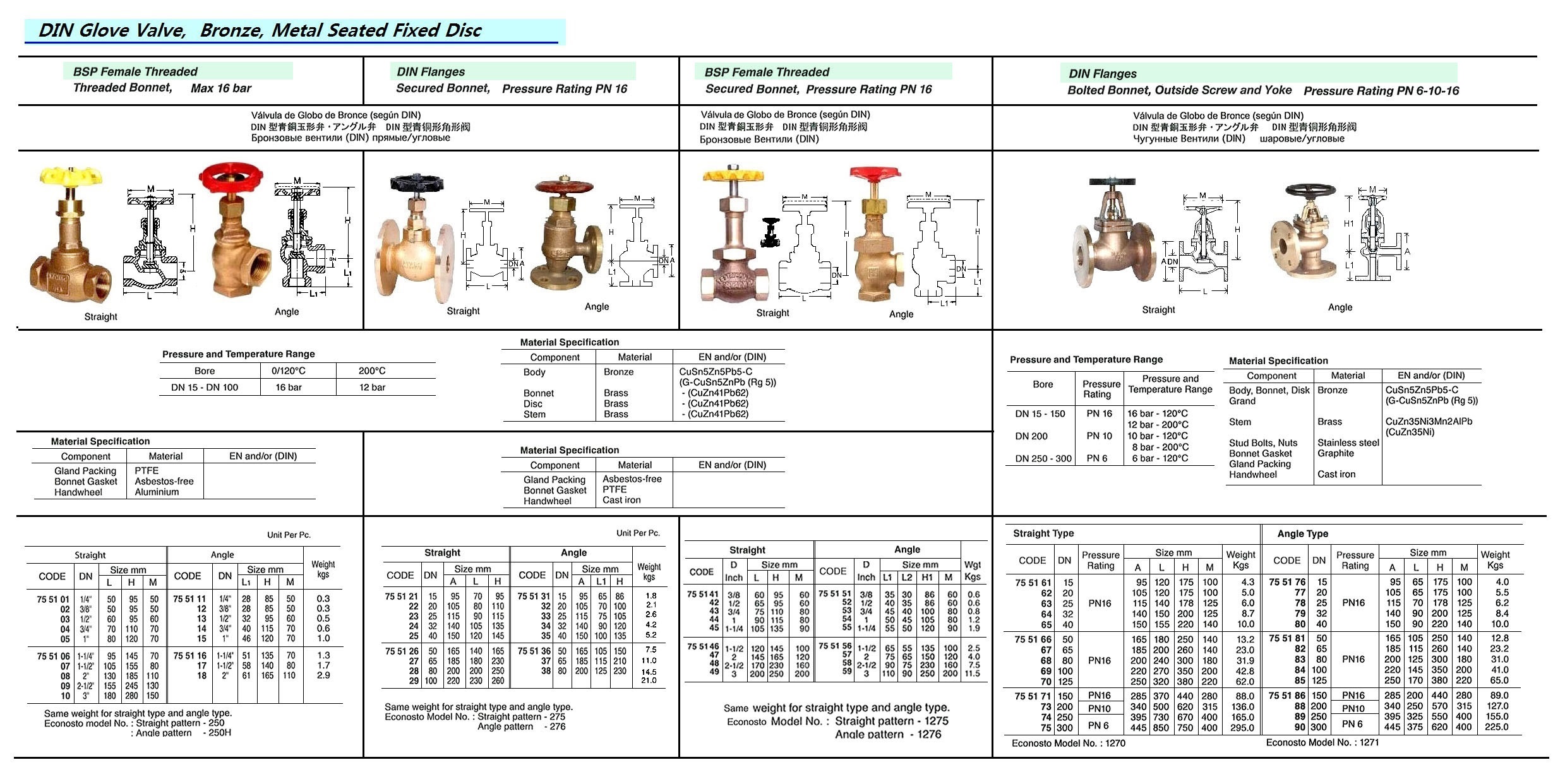

产品规格	Bronze globe valves with bronze disc and seat, pressure rating PN 6/10/16, straight and angle pattern, flat faced flanges according to DIN PN 10/16, bolted bonnet, outside screw & yoke. Heavy pattern for ship building industry. Application : the valves offer good resistance to corrosive action of seawater, fresh water and waste water. Application area: aboard ships, etc. but also in installations where internal or external corrosion is undesirable.
中文汉化	755181 角阀 DIN标准青铜法兰 PN10/16 重型 #1271系列 50mm -----描述-----：这种青铜截止阀配备青铜阀盘和阀座，压力等级为PN 6/10/16，提供直通型和角型两种形式。阀门采用符合DIN PN 10/16标准的平面法兰连接，具有螺栓固定的阀盖和外螺纹与Y型支架（Outside Screw & Yoke, OS&Y）设计。专为船舶制造行业设计的重型型号，适用于海洋环境。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
