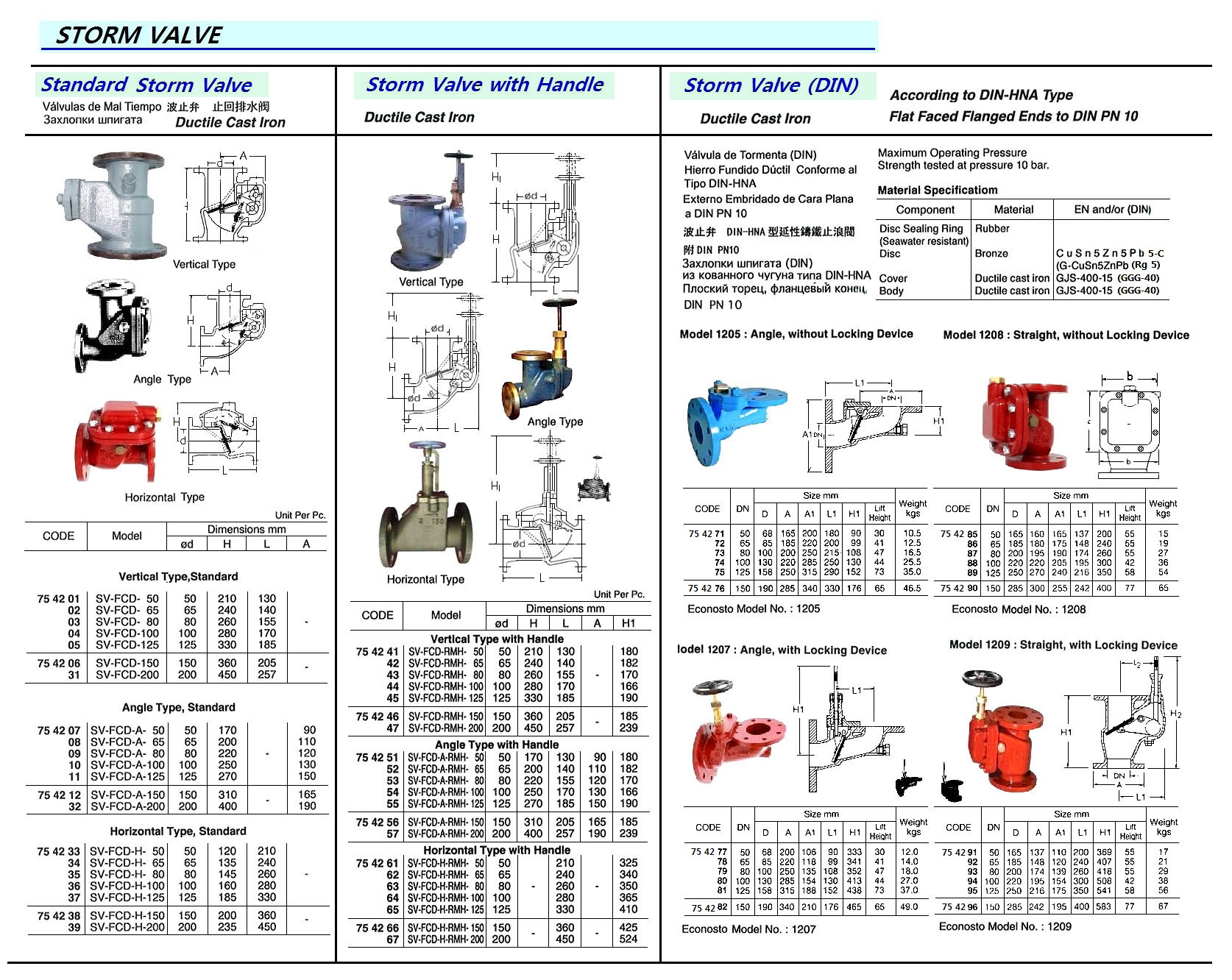

754285 STORM VALVE DIN DUCTILE C/IRON, STRAIGHT W/O LOCK 1208 DN 50

规格参数	参数值
IMPA编码	754285
产品单位	PCE
产品规格	Storm valves are mainly installed in sanitary piping systems which have a ship’s side exit. They will prevent sea water entering this system during heavy sea. Model 1205 and 1208 can be equipped with a locking device in order to obtain model 1207 and 1209. Maximum Operating Pressure, Strength tested at pressure 10 bar.
中文汉化	754285 风暴阀 DIN标准球墨铸铁直通型无锁定 1208 DN50 -----描述-----：风暴阀主要用于安装在具有船体侧出口的卫生管路系统中，其主要功能是在恶劣海况下防止海水倒灌进入系统。型号为1205和1208的阀门可加装锁定装置，从而分别升级为型号1207和1209，以增强操作安全性。该系列阀门的最大工作压力为10 bar，并已在此压力下通过强度测试，确保其在高压力工况下的结构稳定性和长期可靠性。
IMPA版本	8th Edition
