螺丝螺母
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 693877 |
| 产品单位 | PCE |

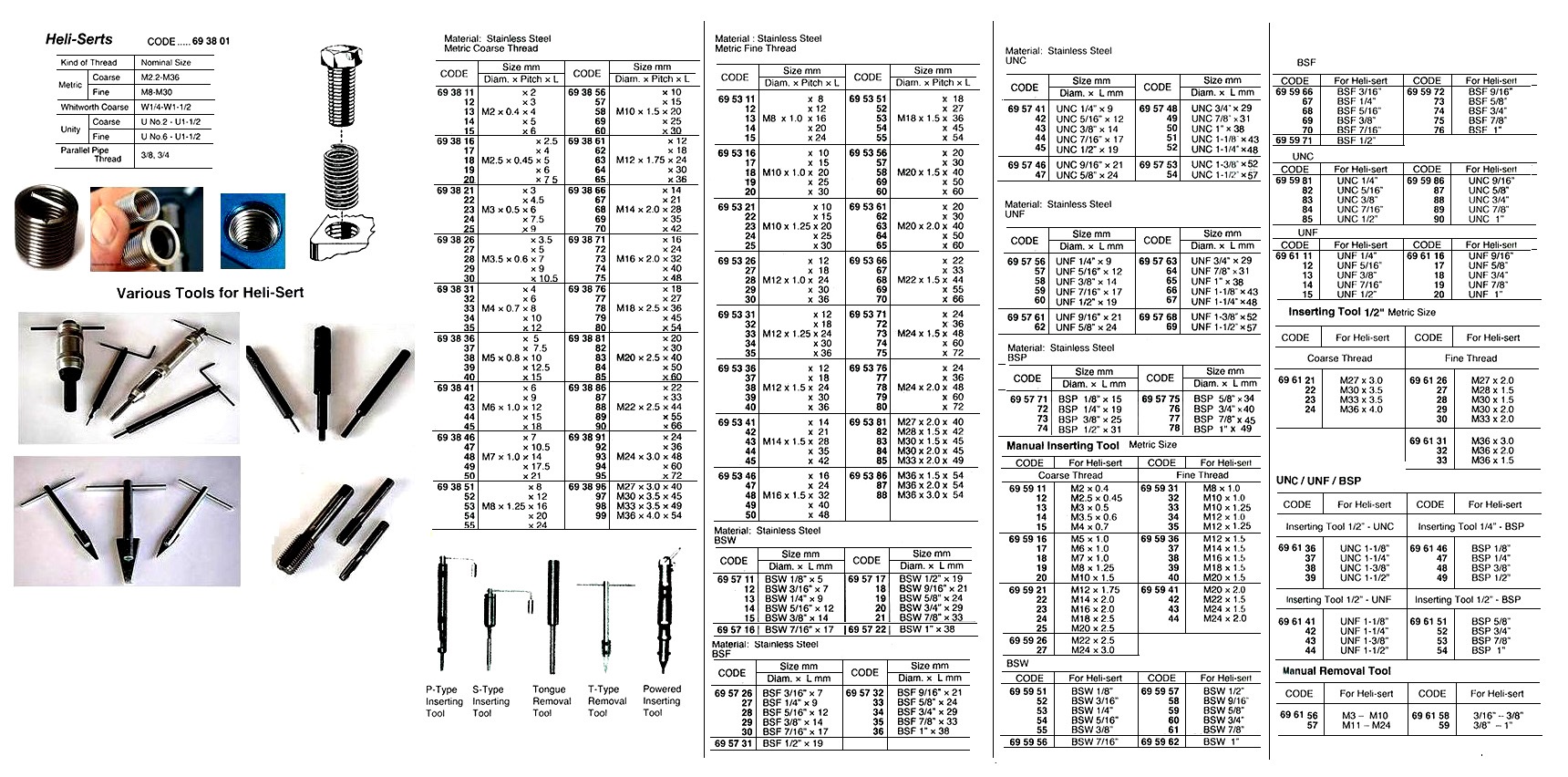

| 产品规格 | Made of stainless steel or bronze. Instead of building up a thread hole by welding worn out threads or using bushes for rethreading, you just have to clean the hole with a tap and insert these heli-serts. Tightening procedure is the same as with the original thread. The proper length of the heli-sert should usually be 1 – 2 times the length of the standard bolts being used. Kind of thread: Nominal size, Metric coarse M2.2-M36, Metric Fine M8-M30, Whitworth Coarse W1/4-W1-1/2, Unify Coarse U |
| 中文汉化 | 693877 钢丝螺套 不锈钢，粗牙 M18 × 2.5 × 27毫米 -----描述-----：该螺纹修复衬套采用不锈钢或青铜材质制造，提供了一种简便的螺纹孔修复方案。与传统焊接修复或使用衬套重新攻丝的方法不同，您只需用丝锥清洁受损螺纹孔后直接安装此螺旋衬套即可，其紧固方式与原生螺纹完全一致。根据使用规范，衬套的标准长度应为配套螺栓长度的1-2倍。产品支持多种螺纹规格：公制粗牙（M2.2-M36）、公制细牙（M8-M30）、惠氏粗牙（W1/4-W1-1/2）、统一制粗牙（U No.2-U1-1/2）、统一制细牙（U No.6-U1-1/2）以及平行管螺纹（3/8"-3/4"）。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
