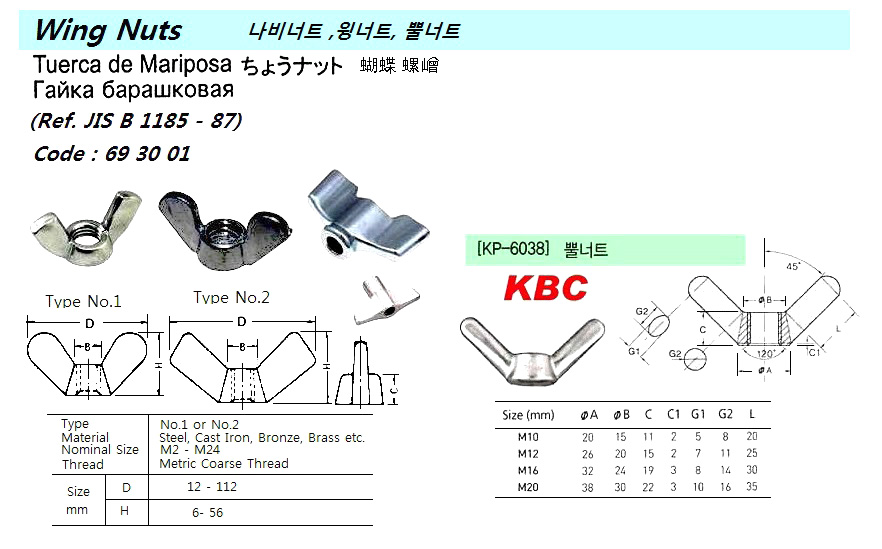

693001 NUT WING WITH FURTHER DETAIL

规格参数	参数值
IMPA编码	693001
产品单位	PCE
产品规格	Type : No.1 or No.2, Material : Steel / Cast iron / Bronze / Brass etc, Nominal size M2-M24, Thread Metric coarse thread, Size mm D=12-112, H=6-56, How to order : CODE 693001, Name Wing nut, Type, Material, Nominal size & thread
中文汉化	693001 蝶形螺母，详见下文 -----描述-----：该产品为翼形螺母，提供两种类型（No.1 或 No.2），材质可选钢、铸铁、青铜或黄铜等，公称尺寸范围为 M2 至 M24，采用公制粗牙螺纹。其外形尺寸范围为：D=12–112mm，H=6–56mm。订货时请使用 CODE 693001，并注明名称“翼形螺母”（Wing nut）、类型、材质、公称尺寸及螺纹规格。
IMPA版本	8th Edition
