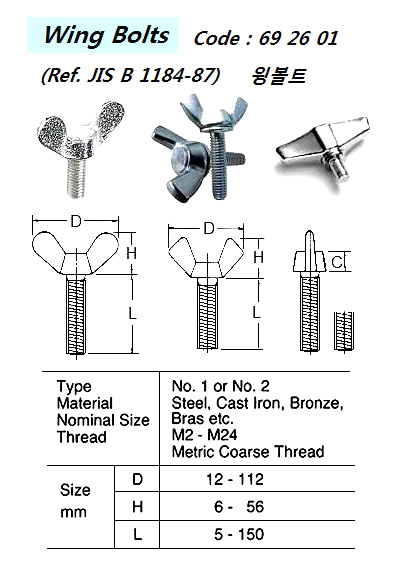

692601 BOLT WING WITH FURTHER DETAIL

规格参数	参数值
IMPA编码	692601
产品单位	PCE
产品规格	Type : No.1 or No.2, Material : Steel / Cast iron / Bronze / Brass etc, Nominal size M2-M24, Thread Metric coarse thread, Size mm D=12-112, H=6-56, L=5-150 How to order : CODE 692601, Name Wing bolt, Type, Material, Nominal size & thread, Length
中文汉化	692601 蝶形螺栓，详见下文 -----描述-----：该产品为翼形螺栓，提供两种类型（No.1 或 No.2），材质可选钢、铸铁、青铜或黄铜等，公称尺寸范围为 M2 至 M24，采用公制粗牙螺纹，外形尺寸范围为 D=12–112mm，H=6–56mm，长度 L=5–150mm。订货时请使用 CODE 692601，并注明名称“翼形螺栓”（Wing bolt）、类型、材质、公称尺寸及螺纹规格、长度。
IMPA版本	8th Edition

以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
