管件接头
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 731819 |
| 产品单位 | PCE |

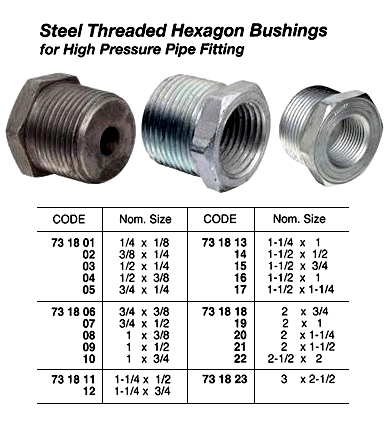

| 产品规格 | High pressure, drop forged steel, ungalvanized (black) pipe fittings with a pressure rating of 210 kgf/cm2 at 120oC. Threads conform to the Taper Pipe Threads standards of JIS B 0203 and the ISO 7/1. Larger sizes and types of fittings not listed below are also available. |
| 中文汉化 | 731819 六角钢制异径接头，2×1，用于高压管件 -----描述-----：高压、落锤锻造的未镀锌（黑色）钢制管件，在120°C下的压力等级为210 kgf/cm2。螺纹符合JIS B 0203和ISO 7/1标准的锥形管螺纹。除下列列出的尺寸和类型外，还可根据需求提供更大尺寸及其他类型的管件。 |
| IMPA版本 | 8th Edition |
