密封接合
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 810382 |
| 产品单位 | BX |

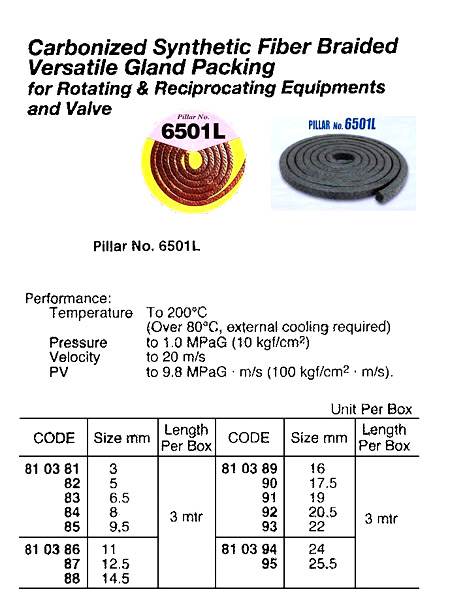

| 产品规格 | Pillar No. 6501L An original gland packing made of braided carbonized synthetic fibers impregnated with micro PTFE dispersion and treated with lubricating oil to achieve superior, well-balanced performance in lubricity, flexibility and strength. Feature: Become a standard gland packing for the standard pumps due to its high performance such as low abrasion of the stem. Applications: Its versatile and high performance has made this gland packing a popular choice for use with many types of rotatin |
| 中文汉化 | 810382 通用碳化纤维密封填料 型号6501L 5毫米×3米 -----描述-----：Pillar No. 6501L 是一种原创的密封填料，采用编织碳化合成纤维制成，并浸渍微细聚四氟乙烯（PTFE）分散液，再经润滑油脂处理，从而在润滑性、柔韧性和强度之间实现了优异的平衡。该产品因磨损小、性能稳定，已成为标准泵用填料的代表。其应用广泛，适用于各类旋转设备和往复式阀门，也特别适合用于船舶尾管和舵杆密封。其性能表现优异，最高使用温度可达200°C（超过80°C时需外部冷却），最大工作压力为1.0 MPaG（10 kgf/cm2），线速度可达20 m/s，PV值高达9.8 MPaG·m/s（100 kgf/cm2·m/s），是一款高性能、多用途的密封解决方案。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
