测量工具
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 653015 |
| 产品单位 | PCE |

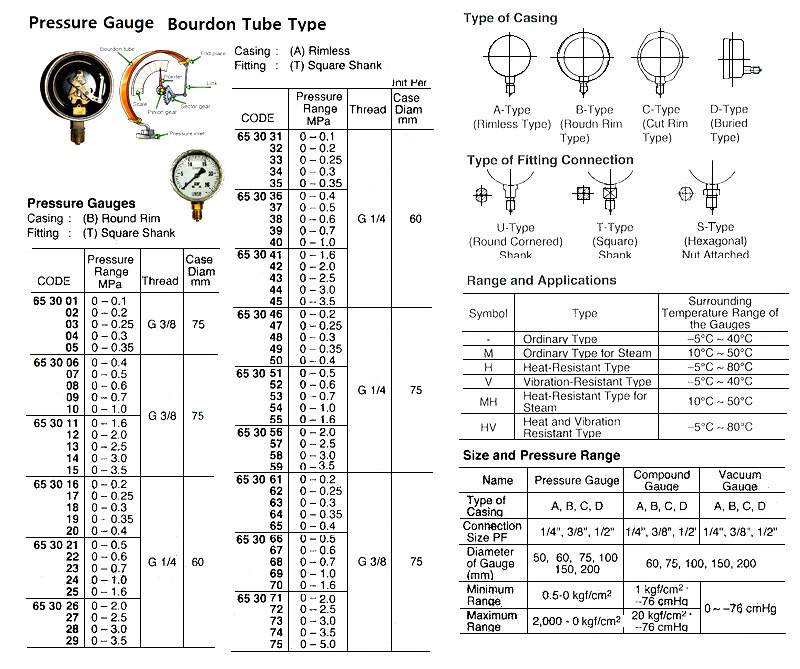

| 产品规格 | Pressure Gauges: Service as a gauge for air, water, steam, oil or sea water and any liquid or gases which are not corrosive to brass. Brass case, friction fit beaded ring and phosphor bronze Bourdon tube. Compound Gauges: For installations where it is necessary to read both pressure and vacuum on one side. Brass case and friction fit beaded ring. Phosphor bronze Bourdon tube. Vacuum Gauges: For vacuum reading. Brass case, friction fit beaded ring and phosphor bronze Bourdon tube. Due to the grea |
| 中文汉化 | 653015 压力表 BT型圆边，方柄 G3/8 75mm 0 - 3.5MPa -----描述-----：压力表适用于空气、水、蒸汽、油或海水以及对黄铜无腐蚀性的液体或气体介质，采用黄铜外壳、摩擦配合的滚花环和磷青铜波登管。复合表用于需在同一刻度盘上同时测量压力和真空的场合，结构同样为黄铜外壳和磷青铜波登管；真空表则专用于测量真空压力，结构组成也基本一致。由于上述仪表在壳体形式、连接方式等方面种类繁多，请结合以下图示及《订购指南》进行选型订购。其螺纹连接标准与直管管螺纹（PF）相同，符合“B.S.P.”（英国标准管螺纹）。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
