测量工具
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 652781 |
| 产品单位 | SET |

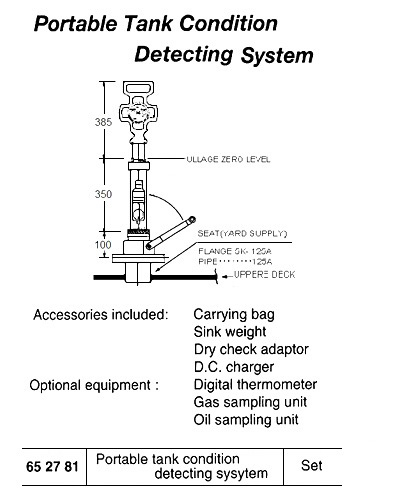

| 产品规格 | A measuring unit to note all important tank conditions for compliance with SOLAS and MARPOL regulations. This device will measure tank conditions such as the cargo level, the oil – water interface level, the temperature, and a dry check to determine the level of water at the tank bottom. The gauge is explosion proof and portable weighing only 4.3 kgs. It has a measuring range of 0 – 30/35 mtr for ullage and a 0 – 100oC temperature range. It is powered with a 2.4 V rechargeable battery and can be |
| 中文汉化 | 652781 便携式油舱状态检测系统 -----描述-----：该测量装置用于记录油舱内的关键状态参数，帮助船舶满足SOLAS和MARPOL公约的合规要求。它可以测量货舱的液位、油水界面高度、温度以及进行干态检查以判断舱底是否有积水。仪表具有防爆功能，整机重量仅4.3公斤，便于携带使用。其空距（ullage）测量范围为0至30/35米，温度测量范围为0至100°C，采用2.4V可充电电池供电。设备还可选配气体和油品采样单元，并配有符合美国海岸警卫队（USCG）船舶蒸汽控制规定的蒸汽密封阀，支持对封闭加压舱柜进行安全取样。配套附件包括携带包、沉锤、干态检查适配器和直流充电器，可选配件包括数字温度计、气体采样单元和油品采样单元。这是一套集成化、便携式的油舱综合检测设备，适用于船舶现场操作与环保监管需求。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
