测量工具
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 652670 |
| 产品单位 | SET |

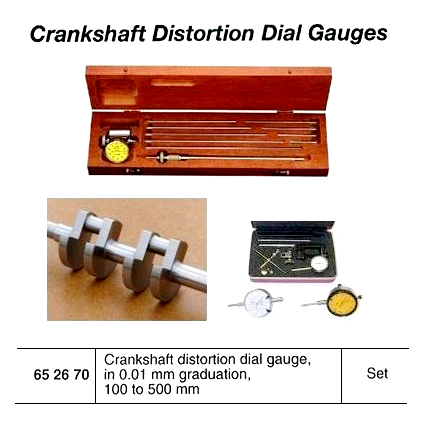

| 产品规格 | An inside gauge for checking the distortion of webs on crankshafts. With these gauges it is possible to check bearing alignments or deflections of the shaft without having to dismantle the engine. Usable on diesel engine shafts as well as center crankshafts of engines or compressors. Can also be applied as a strain gauge on engine frames while the engine is in operation. Indicator is graduated in increments of 0.01 mm with a reading of 0 – 50 – 0 one turn equals 1 mm. 6 rods and one extension ar |
| 中文汉化 | 652670 曲轴变形千分表 测量范围100-500mm 精度0.01mm -----描述-----：该内径量规用于检测曲轴腹板是否发生变形，可在不拆卸发动机的情况下检查轴承对中情况或轴的偏移，适用于柴油机轴、发动机及压缩机的中心曲轴，并可在设备运行时作为应变仪用于发动机框架测量。量规刻度精度为0.01 mm，读数范围为0 – 50 – 0，每转一圈对应1 mm。整套设备配有6根测量杆和1根延长杆，可实现从100 mm至500 mm范围内的多尺寸测量。这种设计不仅提高了现场检测的效率与准确性，也特别适用于需要定期监测大型机械状态的应用场合。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
