测量工具
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 651965 |
| 产品单位 | PCE |

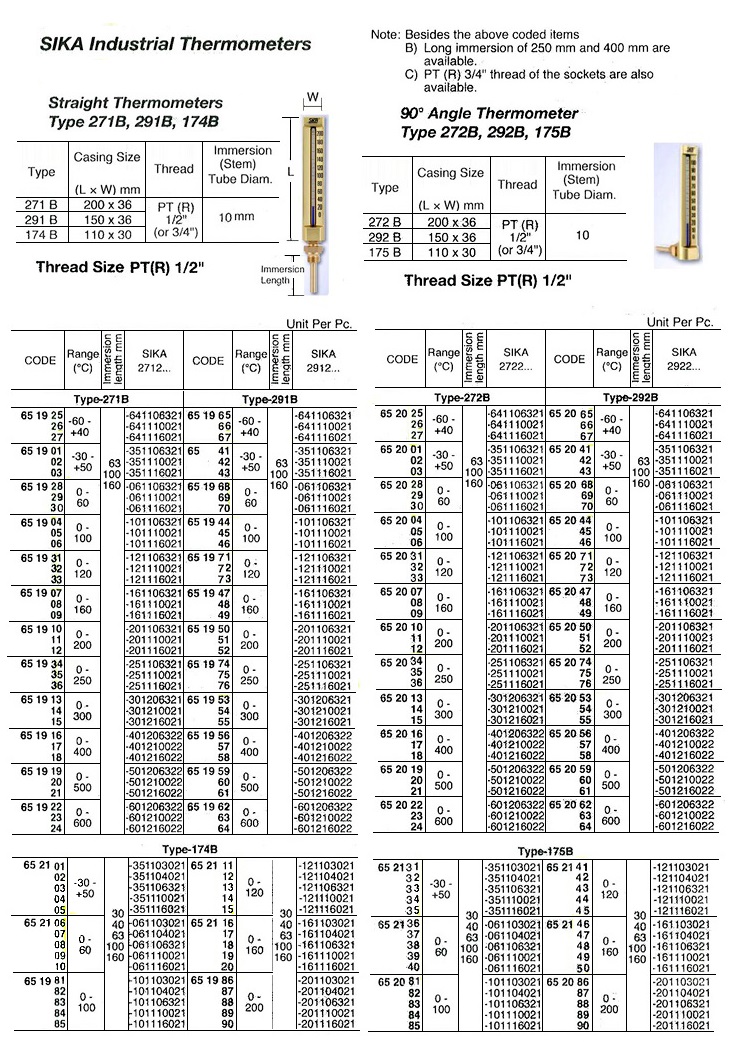

| 产品规格 | A wide variety of Sika thermometers are available. The most widely carried, standard types are listed below with their respective specifications. The thermometer casings are finished in anodized gold colour. Standard models have the graduated readings listed on the right hand side and the surface is coated for protection from outside elements. Straight Thermometers Type 271B, 291B, 174B: Threaded sockets with a solid hexagonal nut. Adjustable to any desired viewing position and locked by |
| 中文汉化 | 651965 温度计，型号SIKA 291B，尺寸150x36mm，接口PT1/2，量程-60~40°C，探杆长度63mm -----描述-----：西卡（Sika）温度计提供多种型号可选，以下是常规标准款的规格参数：温度计外壳采用金色阳极氧化处理，标准型号的刻度读数位于表盘右侧，表面覆有保护涂层。直型温度计（型号271B/291B/174B）配备带实心六角螺母的螺纹接口，可调节观察角度并通过22mm扳手尺寸的黄铜螺母锁定。量程方面，-60°C至+250°C采用蓝色液体指示，250°C以上则使用水银指示；浸入管在250°C以下采用黄铜材质，超过250°C则使用不锈钢。订货时请注明螺纹规格、型号、量程及探杆长度，或直接提供西卡产品编号。常用螺纹规格为PT(R)1/2"，适用于下列编码产品。 |
| IMPA版本 | Other Versions |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
