87. Machinery Equipment

机械设备

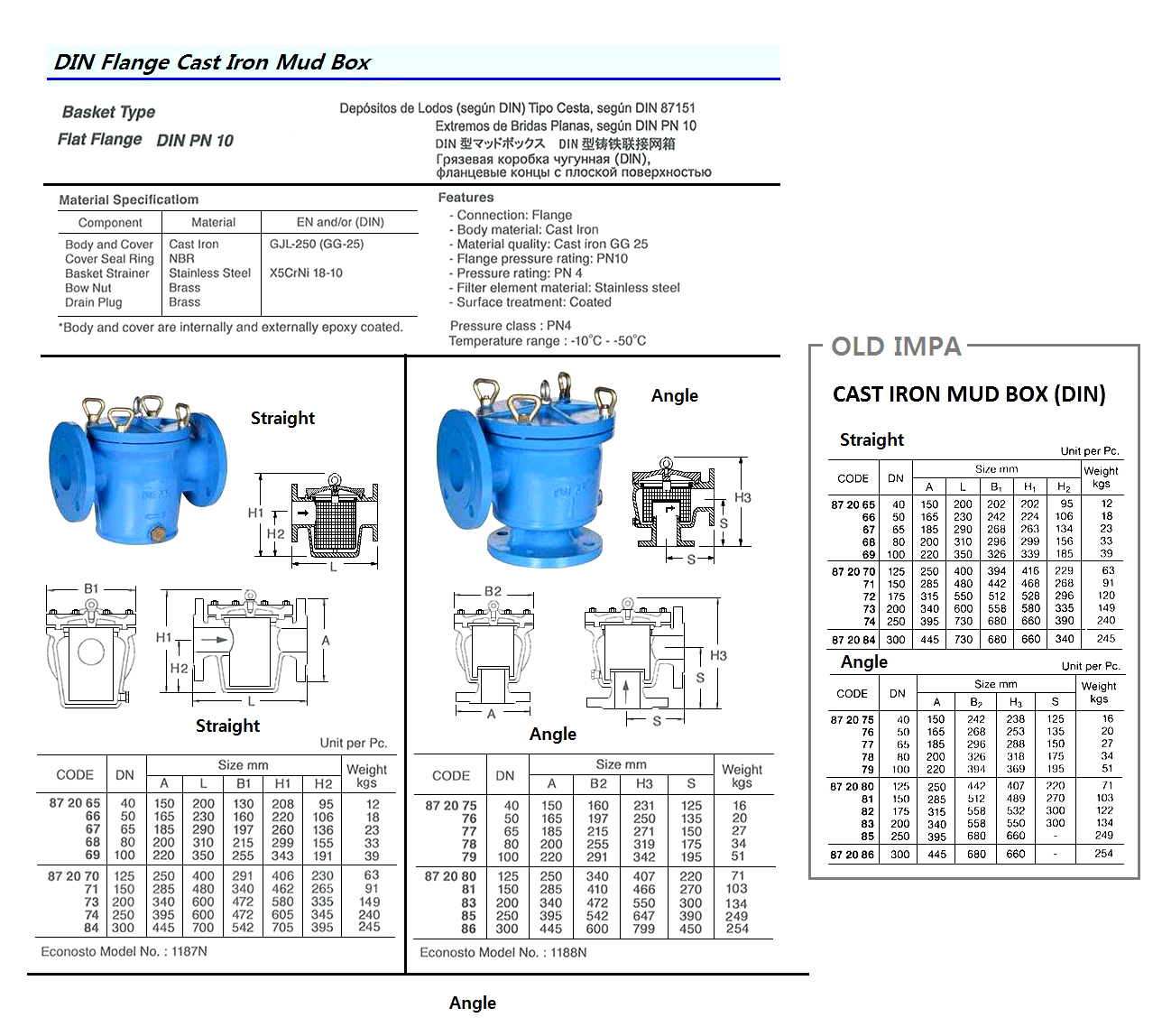

872076 MUD BOX DIN CAST IRON BASKET, FLANGED PN10 ANGLE #1188 50MM

872076 MUD BOX DIN CAST IRON BASKET, FLANGED PN10 ANGLE #1188 50MM
规格参数 参数值
IMPA编码 872076
产品单位 PCE
产品规格 Mud boxes are installed in suction pipes aboard vessels to protect pumps against large solids. The standard perforation size of the strainer basket is 8 mm square; the cover is mounted with brass bow nuts. The cover is provided with a blind boss, suitable for mounting an air vent. These mud boxes are also used for application on shore, for example in swimming pool installations.
中文汉化 872076 铸铁沉泥箱 DIN标准(DIN-德国标准) 篮式 法兰连接 PN10 角式 #1188 50毫米 -----描述-----:吸泥箱安装在船舶的吸入管道上,用于保护泵免受大颗粒固体的损害。滤网篮的标准孔径为8毫米方孔,箱盖采用黄铜蝶形螺母固定。箱盖上设有盲孔凸台,便于安装排气阀。这些吸泥箱也可用于陆地上的应用,例如游泳池等设施的管道系统中,起到类似的过滤和保护作用。
IMPA版本 8th Edition

以上内容为AI翻译,请正确甄别-The above content is translated by AI  and the images are sourced from the internet. Please discern correctly.
