手动工具
| 规格参数 | 参数值 |
|---|---|
| IMPA编码 | 617287 |
| 产品单位 | PCE |

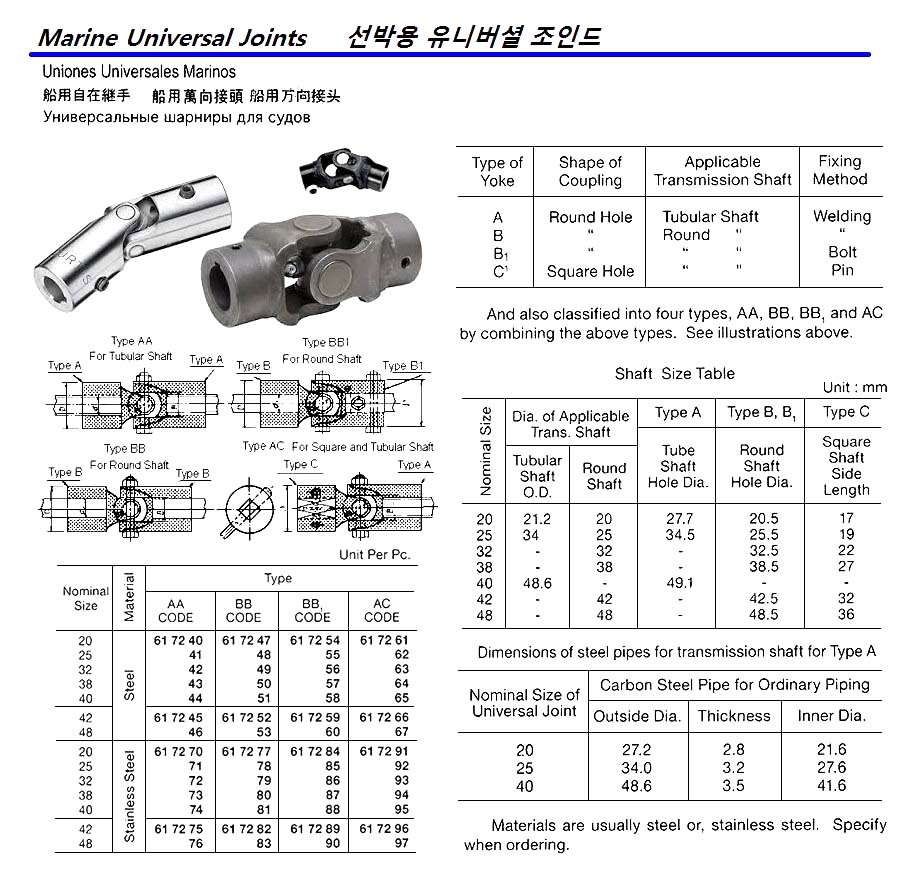

| 产品规格 | These universal joints are used for such operating gears as water sliding doors, sky lights, valves for ventilation, valves for piping, main engine revolution indicators, or transmission gears in ships. They are classified into 4 main types according to the shape of the coupling applicable to the transmission shaft and fixing method of the shaft as shown below. And also classified into four types, AA, BB, BB1 and AC by combining the above types. See illustrations above. Dimensions of steel p |
| 中文汉化 | 617287 船用万向节 BB1型 38号 不锈钢 -----描述-----：这些万向接头适用于船舶中各类操作装置，如水密门、天窗、通风阀、管路阀门、主机转速指示器或传动齿轮等。根据适用于传动轴的联轴器形状及轴的固定方式，可分为四种主要类型，具体分类如下所示。此外，通过上述类型的组合，还可分为AA型、BB型、BB1型和AC型四种形式（见上方示意图）。针对A型传动轴用钢管的尺寸详见图表，材料通常为钢或不锈钢，订购时请注明所需材质。 |
| IMPA版本 | 8th Edition |
以上内容为AI翻译，请正确甄别-The above content is translated by AI and the images are sourced from the internet. Please discern correctly.
