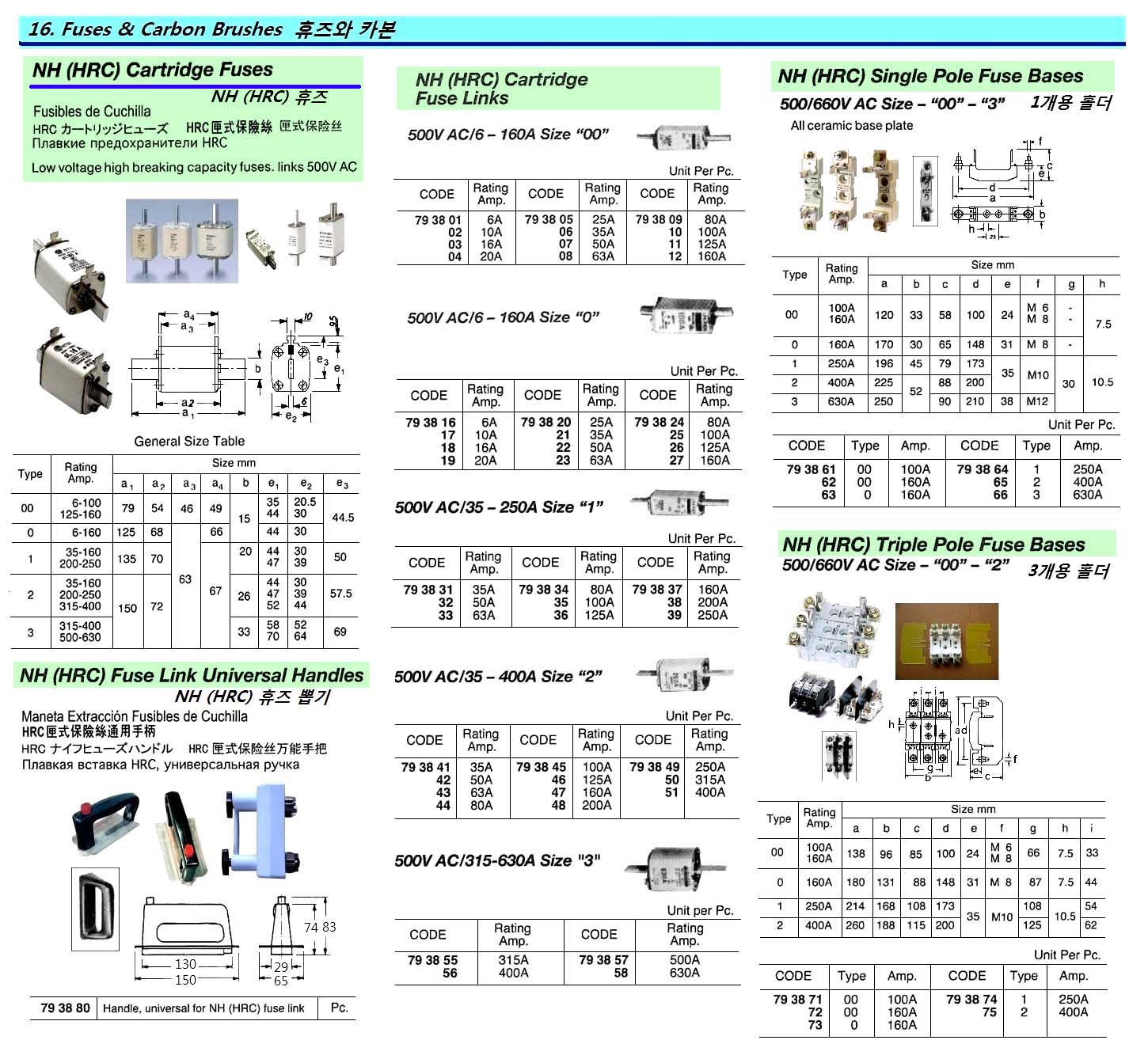

793849 FUSE NH (HRC) SIZE-2 AC500V, 250A

规格参数	参数值
IMPA编码	793849
产品单位	PCE
产品规格	Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.
中文汉化	793849 NH型高分断熔断器(HRC) 尺寸2 交流500V 250A -----描述-----：低压高分断能力保险丝（LV HRC Fuse Links）专用于交流500V线路保护，具有低损耗和卓越的分断能力，能够在故障条件下快速可靠地切断电路。产品符合 DIN 57636 第2部分 / VDE 0636 第2部分标准，尺寸范围为 00 至 3，操作类别为 gL（依据 IEC 269-2），确保适用于广泛的工业电气系统。该系列保险丝采用刀片式触点设计，配备高强度陶瓷绝缘外壳，具备优异的耐热性和灭弧性能，并配有前板状态指示器，便于用户直观判断工作状态。广泛应用于配电柜、控制箱及各类电气设备中，提供高效且安全的过载与短路保护。
IMPA版本	8th Edition
